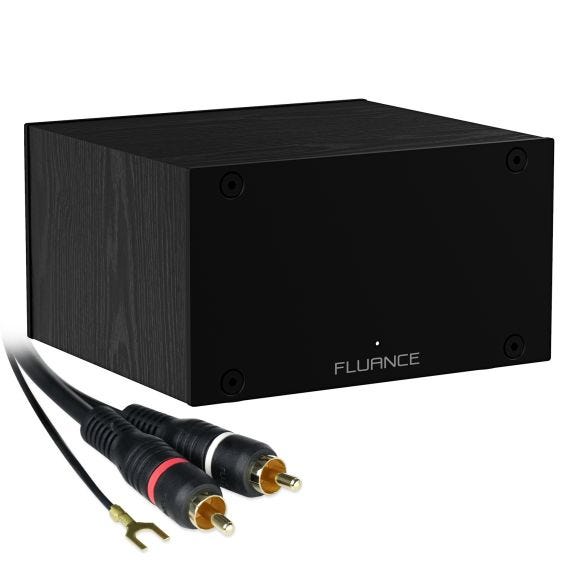

PA10 High Fidelity Phono Preamp with RCA Cable and Ground Wire

PA10 High Fidelity Phono Preamp with RCA Cable and Ground Wire

PA10 High Fidelity Phono Preamp with RCA Cable and Ground Wire

With RIAA Equalization for MM Turntables

$125.99 USD

Free Shipping & Free Returns

X

Shop risk-free knowing that you can return your order within 30 days of receipt for a full refund. We'll even cover the return shipping!

Learn More

One or more items in the Bundle are OUT OF STOCK

Out of Stock - GET NOTIFIED WHEN THIS PRODUCT IS AVAILABLE TO ORDER

Get notified when this product is available to order

or BUY INDIVIDUALLY

SELECT ONE OR MORE INDIVIDUAL ITEM(S) THAT ARE CURRENTLY IN STOCK

PA10 High Fidelity Phono Preamp Image
$99.99 USD

Select one or more individual item(s) from PA10 High Fidelity Phono Preamp with RCA Cable and Ground Wire that are currently in stock

Premium Grade Low Capacitance RCA Audio Cable (3 Feet) Image
$19.99 USD
Fluance Dual Spade Ground Wire Image
$9.99 USD

Overview

Specifications

Premium Grade Low Capacitance RCA Audio Cable (3 Feet)

Premium Grade Low Capacitance RCA Audio Cable (3 Feet)
Length 3'
Compatible With RT80, RT81, RT82, RT83, RT84, RT85, PA10
UPC 061783269053
What's Included
  • 3 Foot Premium Grade RCA Audio Cable
  • Lifetime Customer Support
  • 2 Year Manufacturer’s Warranty
  • Fluance Dual Spade Ground Wire

    Fluance Dual Spade Ground Wire
    Length 3 ft
    Compatible With RT80, RT81, RT82, RT83, RT84, RT85
    UPC 061783269077

    PA10 High Fidelity Phono Preamp

    PA10 High Fidelity Phono Preamp
    Audio Specifications
    Audio Circuit Type Passively Equalized RIAA
    Compatible Stylus MM
    Gain 38 dB
    Phono Input Sensitivity 30 mV
    Total Harmonic Distortion (THD) 0.004%
    RIAA Equalization Accuracy (deviation) 20 Hz - 20 kHz +/- 0.5 dB
    Signal/Noise (S/N) Ratio > 90 dB
    Crosstalk > -86 dB
    Input Impedance 47 kohm
    Input Load Capacitance 100 pF
    Output Impedance 100 ohm
    Output Voltage 2.2 V
    Maximum Input @ 1 kHz 100 mV
    Maximum Phono Stage Output 125 mV
    High Pass Filter Cutoff 20 Hz
    Dynamic Range > 85 dB
    Input/Output Specifications
    Input RCA L/R (Gold Plated)
    Output RCA L/R (Gold Plated)
    Ground Terminal Yes
    Cabinet Specifications
    Cabinet Material MDF
    Finish PVC Wood - Black
    Power Specification
    Power Input 110 V - 240 V ~ 50/60 Hz 0.5 A
    Power Adapter Output 24 V, 500 mA
    Power Consumption 0.4 W
    General Specifications
    Dimensions 4(L) x 2.25(H) x 3.6(D) inches (101.5 x 57.1 x 91.5 mm)
    Weight 11.5 oz (325 g)
    Operating Temperature -5°C - 45°C
    NOISE FLOOR (UNWEIGHTED) < 220 uV
    Compatible With Fluance RT80, RT81, RT82, RT83, RT84, and RT85 turntables as well as any turntables that are equipped with a Moving Magnet cartridge
    What's Included

    PA10 Preamplifier Lineout

    Click to Expand

  • PA10 Unit
  • Power Adapter
  • User Manual
  • Fluance Catalog
  • Lifetime Customer Support
  • 2 Year Manufacturer’s Warranty
  • UPC 061783269794
