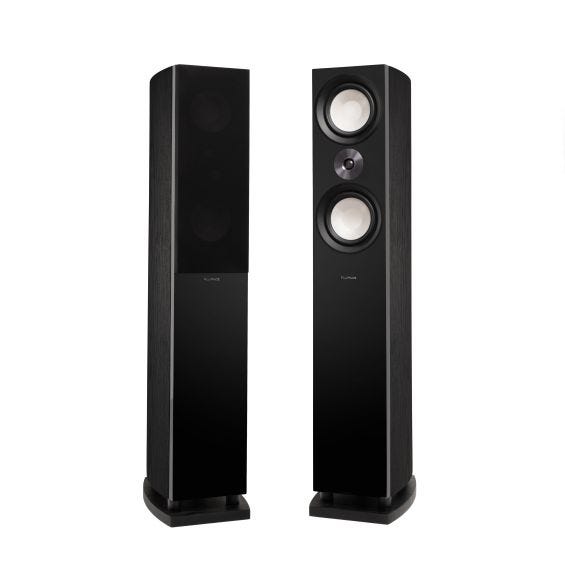

Reference High Performance 3-Way Floorstanding Loudspeakers
with Down-firing 8ā Subwoofers - Black Ash/Pair (XL8F)
Color: Black Ash
NEXT-LEVEL SOUND PERFORMANCE
Engineered with premium components to pack a powerful punch of room-filling music delivering a truly immersive home audio experience
EXQUISITE BASS PERFORMANCE
Unique down-firing 8ā subwoofers produce exceptionally deep and undistorted low frequency response while maintaining a minimalist footprint
RICH AND DETAILED MIDRANGE
Woven fiber drivers provide vibrational damping and optimal linear movement resulting in a faithful reproduction of the original recording
CAPTIVATING CLARITY IN THE HIGH FREQUENCIES
Silk dome neodymium tweeters produce crisp, natural highs while providing spacious off axis dispersion making every spot the sweet spot
SUPERIOR CABINET ENGINEERING
Meticulously designed enclosure with rigid internal bracing to avoid unwanted resonance and dual rear ports for controlled low-frequency response (Frequency Range 35Hz - 25KHz)
Two-way Floorstanding
Main Speakers
HANDLING
RESPONSE
Dimensions
Ferrofluid Cooled
Ferrofluid Cooled
with Butyl Rubber Surrounds
Surrounds Separate Enclosures
Excursion Driver with Butyl Rubber Surround
Surrounds Separate Enclosures
116.48 x 23.50 x 32.99 cm (HxWxD)
120.1 x 27.7 x 39.1 cm (HxWxD)
3-Way Floorstanding
Loudspeakers
Floorstanding Speakers
Ferrofluid Cooled
with Butyl Rubber Surrounds
98.6 x 19.8 x 33 cm (HxWxD)
HANDLING
RESPONSE
Dimensions
with Butyl Rubber Surrounds
98.6 x 19.8 x 33 cm (HxWxD)
Floorstanding Main Speakers
with Butyl Rubber Surrounds
HANDLING
RESPONSE
Dimensions
with Butyl Rubber Surrounds
Excursion Driver with Butyl Rubber Surround
116.48 x 23.50 x 32.99 cm (HxWxD)
Floorstanding Loudspeakers
Silk Dome Ferrofluid Cooled
Fiber Composite Drivers with
Butyl Rubber Surrounds
Treated High Excursion Driver with
Butyl Rubber Surround
HANDLING
RESPONSE
Dimensions
Surrounds Separate Enclosures
Surrounds Separate Enclosures
120.1 x 27.7 x 39.1 cm (HxWxD)
Floorstanding Speakers
Silk Dome Ferrofluid Cooled
Butyl Rubber Surrounds
Separate Enclosures
Butyl Rubber Surrounds
Separate Enclosures
Specifications
Reference High Performance 3-Way Floorstanding Loudspeakers
Series | REFERENCE |
---|---|
Speaker Type | Floorstanding |
Speaker Configuration | 3 Way - 4 Driver Floorstanding Main Speakers (pair) |
Enclosure | Tuned Rear Dual Port Bass Reflex Tower Design Dampened |
Tweeter | 1 inch Neodymium Balanced Silk Dome Ferrofluid Cooled |
Midrange | Dual 6.5 inch Woven Glass Fiber Composite Drivers with Butyl Rubber Surrounds |
Woofer | Isolated Down-firing 8 inch Polymer Treated High Excursion Driver with Butyl Rubber Surround |
Power Handling | 80 - 160 Watts RMS |
Frequency Response | 35Hz - 25KHz |
Sensitivity | 87dB @ 1W / 1m |
Crossover Frequency | 100/3000 Hz Phase Coherent - PCB Mounted Circuitry |
Impedance | 8 Ohm Compatible |
Dolby Atmos | Ideal for use as front speakers in a Dolby Atmos Surround Sound System |
Dimensions | 45.86 x 9.25 x 12.99 inches / 116.5 x 23.5 x 33 cm (HxWxD) |
Speaker Weight | 47.70 pounds/speaker (21.64 kg/speaker) |
Frequency Response Graph | Click to Expand |
Fluance Speaker Size Comparison Chart | |
Certifications | CE Certified |
UPC | 61783269787 |
What's Included |
|
What's Included
Frequently Asked Questions
While they follow the same form factor, the XL8 Reference Series feature improved components such as woven glass fiber composite drivers. We've also redesigned the crossover, drivers and cabinet to improve the overall performance of the entire series.
