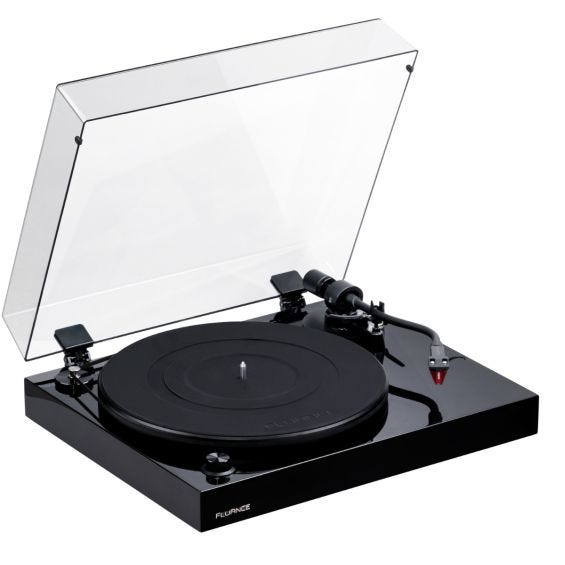

RT83 Reference High Fidelity Vinyl Turntable

RT83 Reference High Fidelity Vinyl Turntable

Record Player with Ortofon 2M Red Cartridge, Speed Control Motor, Solid Wood Plinth, Vibration Isolation Feet

$349.99 USD

Free Shipping

color:

model:

RT83

  Estimated Delivery Date : January 28

OR

RT83 Reference High Fidelity Vinyl Turntable

PURE ANALOG PERFORMANCE

The definitive vinyl record listening experience for beautifully warm and natural music, transporting you into the center of the performance

EXCEPTIONAL MUSICAL ACCURACY

Immerse yourself in the open, dynamic and warm sound of the Ortofon 2M Red elliptical cartridge delivering improved linearity, higher channel separation and reduced distortion

SPEED CONTROL FOR PRECISION PLAYBACK

The isolated motor prevents unwanted vibrations and noise while the speed control mechanism ensures consistent platter velocity (0.07% Wow/Flutter)

SOLID WOOD PLINTH

Revel in the gorgeous solid wood cabinet with a highly precise metal platter and adjustable resonance damping feet, ensuring superior isolation from unwanted micro-vibrations

SPECTACULAR SIGNAL CLARITY

Caress your records with the balanced S-shaped tonearm for accurate tracking of the record groove and no electronics in the signal path for a cleaner, exceptionally detailed sound (Note: phono preamp not included)

Overview

unparalleled vinyl music playback

Specifications

Cabinet Specifications
Cabinet Material MDF
Finish High Gloss Black Paint
Dust Cover Yes - Tinted
Turntable Specifications
Drive System Belt Drive
Motor DC Motor with Servo Controller Analyzes motor speed 500 times/sec
Speed 33 1/3 RPM, 45 RPM
Speed Variation 0.13%
Wow and Flutter 0.07%
Signal-to-Noise Ratio (Weighted) 76 dB
Signal-to-Noise Ratio (Unweighted) 65 dB
Platter Aluminum
Diameter of Platter 12 inches (30 cm)
Auto-Stop Yes
Turntable Mat Rubber
Tonearm Specifications
Tonearm Type Static Balanced, S-Type
Supported Cartridge Weight 0.12 – 0.25 oz (3.5 – 7.5 g)
Anti-skating Adjustment Yes – Adjustable
Pivot Bearing Yes
Tonearm Material Aluminum
Tonearm Wire 36 AWG Litz Cable / 7 Strand
Effective Tonearm Mass 0.99 oz (28.2 g)
Overhang 0.76 inches (19.2 mm)
Effective Tonearm Length 8.82 inches (224 mm)
Headshell Mount H-4 Bayonet Mount
Cartridge Specifications
Cartridge Type Moving Magnet (MM)
Catridge Model Ortofon: 2M Red
Replacement Stylus Stylus 2M Red
Stylus 0.3 x 0.7 mil
Cantilever Aluminum
Mount Half-inch
Frequency Response 20 - 22,000 Hz
Channel Separation 22 dB at 1 kHz
Channel Balance < 1.5 dB @ 1 kHz
Load Impedance/Capacitance 47k Ohms/150 - 300 pF
Output Voltage 5.5 mV
Cartridge Weight 0.25 oz (7.2g)
Headshell Weight 0.35 oz (10 g)
Recommended Tracking Force 0.06 - 0.07 oz (1.6 - 2.0 g)
Vertical Tracking Angle 20°
Rubber Belt Specifications
Width 0.17 inches (4.5 mm)
Length 36.02 inches (915 mm)
Thickness 0.02 inches (0.6 mm)
Output Specifications
Connector RCA (Gold-plated)
Preamp No - Separate Phono Preamp Required
Phono Output 5.5 mV
Phono Bypass N/A
Line Output N/A
Ground Terminal Yes
Power Specification
Input 100 – 240 V AC (50/60 Hz)
Output 12 V / 500 mA
Consumption 1.5 W
General Specifications
Dimensions 16.5 x 5.5 x 13.75 inches (419.1 x 139.7 x 349.25 mm)
Unit Weight 14.1 lbs (6.4 kg)
Operating Temperature 41°F to 95°F (5°C to 35°C)
UPC 061783268391
What's Included

RT83 Reference Turntable Line Out

Click to Expand

RT83 Reference Turntable Line Out


  • RT83T Turntable
  • Dust Cover + Hinges
  • Bubble Level
  • Headshell with Ortofon 2M Red Cartridge
  • Counterweight
  • Metal Platter with Belt
  • Rubber Platter Mat
  • 100 - 240 V (50/60Hz) AC Power Adapter
  • 3ft RCA Cable
  • 2x 3 ft Ground Wire
  • 45 Adaptor
  • Motor Pulley Cap
  • User Manual
  • Lifetime Customer Support
  • 2 Year Manufacturer’s Direct Warranty
