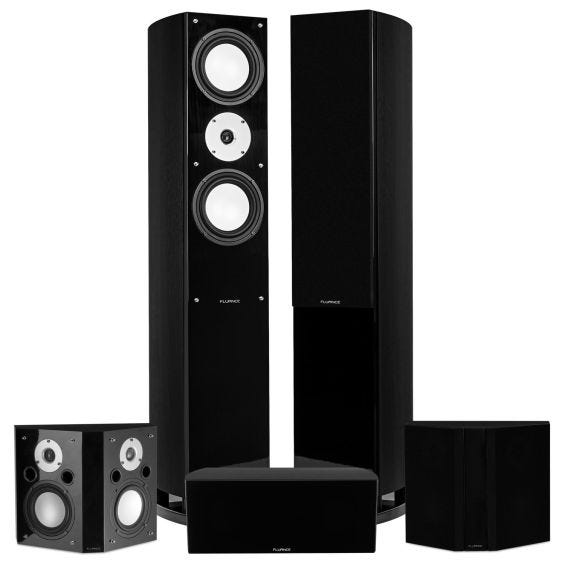

Reference Series Surround Sound Home Theater 5.0 Channel Speaker System
with Bipolar Speakers – Black Ash (XL50BB)
This product is Discontinued
Recommended Item:

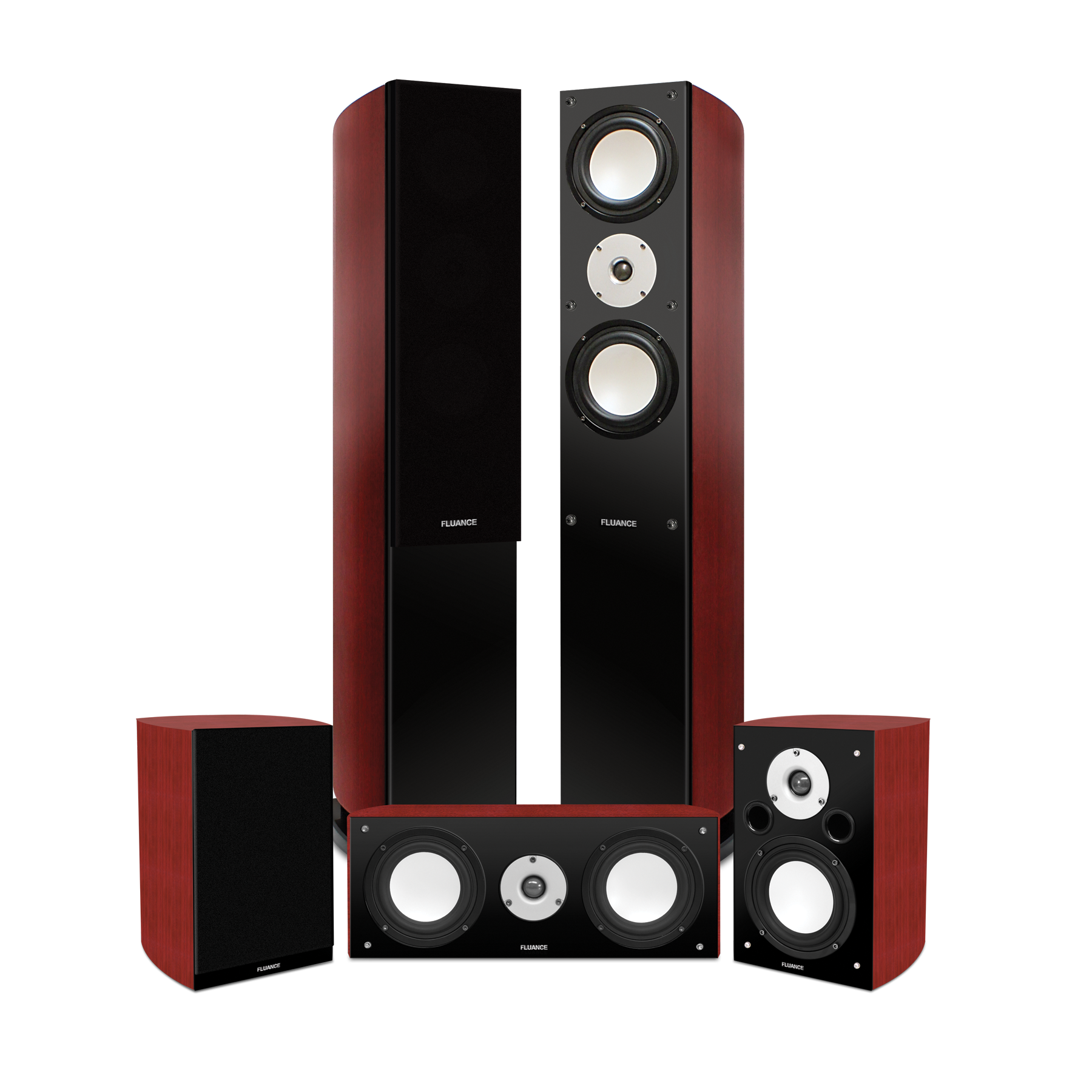

Reference Series Surround Sound Home Theater 5.0 Channel Speaker System
Learn More
The Reference Series 5.0 Compact Surround Sound System
The Reference Series 5.0 Surround Sound System encapsulates you with every sound the way the artist intended. This home theater system includes floorstanding tower speakers delivering full range sound, a center channel speaker to accentuate crisp vocals, and bipolar speakers for enveloping 3-dimenstional sound allowing you to experience the highest symphonic crescendos to the deepest smoothest jazz.
Not Just Speakers. They’re a Lifestyle.
This speaker provides superior performance at every volume level with outstanding precision and clarity, allowing you to soak up all the dramatic impact your music and movies can deliver.
As Powerful as Tower Speakers
Not your typical surrounds, these speakers can also be utilized as bookshelves or fronts. They provide superior performance at every volume level with outstanding precision and clarity, allowing you to soak up all the dramatic impact your movies and music can deliver.
Thrilling Highs
Soar to new heights as bullets fly and cymbals clash through the neodymium tweeters of the XL7S Surround Sound Speakers. Our superior tweeters produce high frequencies with captivating clarity at all volume levels. Enhance your home theater system with surround sound effects that are vibrant, controlled and audibly stunning.
Richness in the middle
The essence of all harmonious sound reproductions is the midrange driver. The XL Series surround sound speakers house first-class midrange drivers that pick up the tones and notes most easily recognized by the human ear. Ease on into the velvety nuances of your favorite movies for a truly authentic listening experience.
Serious Cabinet Engineering
The cabinets are precision crafted with engineered MDF wood to create a warm, distortion-free sound. Combining the striking exterior features of the black wood grain finish, and glossy piano-black front baffles with the premium components will mesmerize listeners for a holistic surround sound experience.
System Includes: XL7CBK, XLBPBK, XL7FBK
Specifications
Reference Series High Performance Three-way Floorstanding Loudspeakers
| Series | REFERENCE |
|---|---|
| Speaker Configuration | 3 Way - 4 Driver Floorstanding Main Speakers |
| Enclosure | Tuned Rear Port Bass Reflex Tower Design |
| Tweeter | 1 inch Neodymium Balanced Silk Dome Ferrofluid Cooled |
| Midrange | Dual 6.5 inch Polymer Treated Butyl Rubber Surrounds Separate Enclosures |
| Woofer | Isolated Down-firing 8 inch Polymer Treated High Excursion with Butyl Rubber Surround |
| Power Handling | 80 - 200 Watts RMS |
| Frequency Response | 45Hz - 20KHz |
| Sensitivity | 89dB @ 2.83V / 1m |
| Crossover Frequency | 800/3500 Hz Phase Coherent - PCB Mounted Circuitry |
| Impedance | 4 ~ 8 Ohms |
| Dolby Atmos | Ideal for use as front speakers in a Dolby Atmos%E2%84%A2 Surround Sound System |
| Dimensions | 45.8 x 8.5 x 13.4 inches |
| Speaker Weight | 45.2 pounds/speaker |
| Frequency Response Graph | Click to Expand |
| Fluance Speaker Size Comparison Chart | |
| Certifications | CE Certified |
| UPC | 61783265239 |
| What's Included |
|
Reference Series High Performance Two-way Center Channel Speaker
| Series | REFERENCE |
|---|---|
| Speaker Configuration | 2 Way - 3 Driver Center Channel |
| Enclosure | Vented Bass-reflex Design |
| Tweeter | 1 inch Neodymium Balanced Silk Dome Ferrofluid Cooled |
| Woofer | Dual 5 inch Polymer Treated Butyl Rubber Surrounds |
| Power Handling | 30 – 120 Watts RMS |
| Frequency Response | 60 – 20KHz |
| Sensitivity | 85dB @ 2.83V / 1m |
| Crossover Frequency | 3600 Hz Phase Coherent |
| Impedance | 8 Ohms |
| Dolby Atmos | Ideal for use as front speakers in a Dolby Atmos%E2%84%A2 Surround Sound System |
| Dimensions | 6.9 X 18.5 X 9.0 inches / 17.5 x 47 x 22.9 cm (HxWxD) |
| Speaker Weight | 13.8 pounds |
| Frequency Response Graph | Click to Expand |
| Fluance Speaker Size Comparison Chart | |
| Certifications | CE Certified, RoHS |
| UPC | 061783265741 |
| What's Included |
Reference Series Wide Dispersion Bipolar Surround Sound Speakers
| Series | REFERENCE |
|---|---|
| Speaker Type | Bipolar |
| Speaker Configuration | 2 Way - 4 Driver Bipolar Surround Speakers (Wall Mountable) |
| Enclosure | Ported Bass Reflex |
| Tweeter | Dual 1 inch Neodymium Balanced Dome Ferrofluid Cooled For Longer Life |
| Woofer | Dual 5 inch Polymer Treated with Butyl Rubber Surrounds |
| Power Handling | 60 - 120 Watts RMS |
| Frequency Response | 60Hz - 20KHz |
| Sensitivity | 88dB @ 2.83V / 1m |
| Crossover Frequency | 3500 Hz Phase Coherent - PCB Mounted Circuitry |
| Impedance | 8 Ohms |
| Dolby Atmos | Ideal for use as surround sound speakers in a Dolby Atmos™ Surround Sound System |
| Dimensions | 11.4 x 7.6 x 13.8 inch |
| Speaker Weight | 11.5 pounds/speaker |
| Frequency Response Graph | Click to Expand |
| Fluance Speaker Size Comparison Chart | |
| Certifications | CE Certified, RoHS |
| UPC | 61783265772 |
| What's Included |
What's Included
Videos
Guides
Take a comprehensive look at the set up, function, and maintenance of your product. The product manual details all of its specifications and how to care for your Fluance product.
