Understanding AMT Ribbon Tweeters: Key Features and Benefits

In the audiophile world, achieving pristine sound quality is a constant pursuit. Ribbon tweeters have long been celebrated for their superior clarity and precision in reproducing high frequencies, making them a favorite among audio enthusiasts. This detailed exploration delves into the mechanics, varieties, and applications of ribbon tweeters, shedding light on why they are considered a top choice for high-fidelity sound systems.

Historical Perspective: The Evolution of Ribbon Tweeters

Ribbon tweeter technology has evolved significantly since its inception. The concept of ribbon tweeters dates back to the early 20th century when the need for better high-frequency response in loudspeakers led to the development of drivers using thin ribbons of material that responded more quickly than traditional cones. Over the decades, advances in materials and magnetic design have allowed for more robust and efficient ribbon tweeters, culminating in the development of the Air Motion Transformer by Dr. Oskar Heil in the 1970s. This design improved upon traditional ribbon tweeters by using a folded diaphragm to increase air movement and reduce distortion.

Types of Ribbon Tweeters

Exploring the different types of ribbon tweeters reveals their unique characteristics and suitability for various audio setups:

1. True Ribbon Tweeters: These are the simplest form of ribbon tweeters and utilize a flat or pleated aluminum strip within a strong magnetic field to produce sound. They are prized for their rapid response and exceptional clarity in the high-frequency range.
2. Magnetostatic Ribbon Tweeters: Similar to true ribbons but feature a unique alignment of magnets to enhance control over the ribbon's movement. This design can lead to more precise sound reproduction, particularly useful in multi-channel systems where sound staging is critical.
3. Air Motion Transformers (AMT): Building on the ribbon concept, AMTs use a folded diaphragm to create a larger surface area, allowing for more efficient air movement and improved sound dynamics. They are especially effective in reducing listener fatigue during long listening sessions, thanks to their smooth and detailed sound output.

Comparative Analysis: Ribbon Tweeters vs. Other Technologies

While ribbon tweeters offer many benefits, it's important to compare them with other tweeter technologies to understand their position in the market:

Ribbon Tweeters vs Dome Tweeters:

The most common type found in home audio systems, dome tweeters are generally less expensive than ribbon tweeters and provide good performance for a wide audience. However, they often cannot match the speed and clarity of ribbon tweeters, especially at very high frequencies.

Ribbon Tweeters vs Cone Tweeters:

These are similar to dome tweeters but use a cone-shaped diaphragm. Cone tweeters typically offer good efficiency and low cost but are outperformed by ribbon tweeters in terms of detail and frequency response.

Ribbon Tweeters vs Electrostatic Tweeters:

Known for their excellent detail and smooth response, electrostatic tweeters are similar to ribbon tweeters in many respects but tend to be larger and more difficult to integrate into conventional loudspeaker systems. They also require high voltages, making them less practical for some applications.

Technical Advantages Over Other Tweeter Technologies

Comparing ribbon tweeters to other technologies such as dome and cone tweeters highlights their strengths and why they might be preferred in high-end audio systems:

1. Frequency Response:
   • Ribbon Tweeters: Ribbon tweeters are renowned for their exceptionally wide and linear frequency response, often ranging from about 1,500 Hz to well beyond 30 kHz. This wide range allows them to reproduce the subtleties and harmonics of music with greater accuracy and less coloration. The linearity ensures that all frequencies within this range are produced at consistent levels, avoiding peaks and dips that can color the sound.
   • Comparison with Dome Tweeters: Dome tweeters, typically made from materials like silk, polymer, or metal, usually have a narrower frequency range and are less linear. This can lead to a less accurate reproduction of the sound spectrum, especially in the upper frequencies where dome tweeters may exhibit resonance peaks.
   • Comparison with Cone Tweeters: Cone tweeters, using similar materials to dome tweeters, share many of the same limitations. However, their design often results in even more pronounced coloration and directivity issues at higher frequencies, making them less ideal for true high-fidelity audio tasks.
2. Transient Response:
   • Ribbon Tweeters: The transient response of ribbon tweeters is superior due to the very low mass of the ribbon diaphragm. This allows it to react instantaneously to the electrical signal changes it receives, translating into an ability to reproduce the start and stop of musical notes with precision and immediacy. This is crucial for preserving the life-like quality of live music in recordings.
   • Comparison with Dome Tweeters: Dome tweeters, while capable of good transient response, are often hampered by the added mass of their dome-shaped diaphragm and the inherent damping properties of the materials used. This results in a slightly slower response to signal changes, which can blur the details in fast-paced or complex musical passages.
   • Comparison with Cone Tweeters: Cone tweeters generally have the poorest transient response among the tweeter types due to their larger mass and the mechanical properties of their conical design. This leads to slower adaptation to signal changes, reducing the clarity and detail in the reproduction of quick transients.
3. Distortion Levels:
   • Ribbon Tweeters: One of the key strengths of ribbon tweeters is their ability to maintain low distortion levels across their operating range. This is partly due to the uniform drive provided by the electromagnetic force across the entire surface of the ribbon, which reduces modal breakup and other forms of distortion typically seen in dome and cone drivers.
   • Comparison with Dome and Cone Tweeters: Both dome and cone tweeters can suffer from higher levels of distortion, particularly at higher frequencies. This distortion arises from uneven driving forces, material resonances, and other mechanical limitations inherent in their respective designs.
4. Directivity and Soundstage:
   • Ribbon Tweeters: Ribbon tweeters often feature a naturally wider dispersion pattern horizontally, which helps in creating a more expansive and immersive soundstage. This characteristic is particularly beneficial in stereo and multi-channel audio setups.
   • Comparison with Dome Tweeters: Dome tweeters can exhibit more beaming, where sound is focused into a narrower path as frequency increases, leading to a more restricted soundstage.
   • Comparison with Cone Tweeters: Cone tweeters generally have the most limited dispersion, significantly affecting the listener’s ability to perceive a wide and even soundstage, particularly at high frequencies.

These technical advantages make ribbon tweeters particularly suitable for high-end audio systems where precision in sound reproduction is paramount. The detailed and accurate audio output ensures that listeners experience music and audio content with the highest fidelity, closely replicating the original performance.

Applications of Ribbon Tweeters

Ribbon tweeters are not only popular among audiophiles but also have significant applications in professional audio production and home audio systems due to their detailed sound reproduction:

1. Professional Audio Production: In studios, ribbon tweeters are favored for their accurate sound reproduction. Sound engineers rely on them for mixing and mastering because they provide a transparent sound that helps in precisely tweaking tracks.
2. Home Audio Systems: For home audio enthusiasts, ribbon tweeters can transform a listening room into a concert hall experience. Their ability to deliver crisp and expansive high frequencies makes them ideal for listening to a wide range of music genres, from classical orchestras to high-energy rock.
3. Public Address Systems: In certain high-end PA systems, ribbon tweeters are employed to ensure clear sound delivery over large areas without the harshness that can come from traditional horn-loaded tweeters.

Design of AMT Ribbon Tweeters

Air Motion Transformer (AMT) ribbon tweeters are a breakthrough in loudspeaker technology, primarily distinguished by their unique diaphragm design. Unlike conventional tweeters that use a simple flat or domed diaphragm, AMT tweeters employ a pleated diaphragm made from polyethylene terephthalate (PET) film. This diaphragm is not only lightweight and durable but also features a series of accordion-like folds that significantly enhance its acoustic performance.

Material Composition and Functionality

The core material of the AMT diaphragm, PET, is chosen for its excellent mechanical properties, including flexibility and strength. These characteristics are crucial as they allow the diaphragm to undergo rapid and intense movements without losing its structural integrity or performance over time. Moreover, PET’s resistance to environmental factors like temperature variations and humidity ensures long-term reliability and consistency in sound output. To enable movement and sound production, the PET film is etched with conductive aluminum, forming what is effectively the voice coil. This etched aluminum, integral to the tweeter's function, interacts with a magnetic field to produce movement. It is crucial to note that the PET film itself is inert in this process; its movement is facilitated entirely by the aluminum etching reacting to the magnetic field.

How Does an AMT Tweeter Work?

The Air Motion Transformer (AMT) Tweeter operates on a unique principle that significantly differs from conventional tweeter designs. Its operation can be understood through a combination of electromagnetic force interactions and advanced diaphragm motion techniques. The image below illustrates the working principle of an AMT tweeter through three key phases of an audio signal cycle: zero crossing, positive halfwave, and negative halfwave.

• Zero Crossing: This is the point where the audio signal transitions from negative to positive. Here, the movement of the diaphragm is minimal because the electrical current—and consequently, the magnetic interaction—is at its lowest. This results in the least amount of air movement.
• Positive Halfwave: During this phase, the audio signal increases positively, which heightens the electrical current through the diaphragm. The increased current enhances the Lorentz force acting on the diaphragm. This force contracts the pleats of the diaphragm, effectively squeezing air out at high velocity, which correlates with the peak of the positive audio waveform.
• Negative Halfwave: As the signal shifts to its negative phase, the current reverses, altering the direction of the Lorentz force. This expansion of the diaphragm pulls air back in, matching the peak negative amplitude of the waveform.

The mechanism of action in AMT results in a highly efficient air movement strategy where the airspeed is significantly faster—approximately four times—than the diaphragm's actual motion. This rapid air movement is key to the AMT's ability to deliver clear, precise, and dynamic sound output, particularly effective in handling complex musical passages without distortion.

Acoustic Benefits and Efficiency of AMT Ribbon Tweeters

As previously discussed, Air Motion Transformer (AMT) Tweeters utilize a pleated diaphragm design that substantially increases surface area without necessitating a larger tweeter size. This unique configuration enables enhanced interaction with air, leading to superior sound production efficiency. Building on the foundational concepts covered earlier, this section delves deeper into the specific acoustic advantages of AMT tweeters and their practical implications in audio systems.

1. Efficient Air Interaction: The increased surface area of the AMT's pleated diaphragm allows for a more effective air interaction, which is pivotal in achieving the dynamic and clear audio performance AMTs are known for, especially in high-frequency ranges. This efficiency in sound production ensures that the audio output is not only loud but also incredibly clear, maintaining the integrity of the sound across a variety of listening environments.
2. Distortion Minimization: Reflecting on the mechanical design advantages mentioned earlier, the lateral movement characteristic of the AMT diaphragm significantly reduces distortion compared to traditional piston-like movements found in other tweeter types. This movement ensures that the sound produced is cleaner and more accurate, providing a listening experience that is true to the original recording.
3. Enhanced Sound Production: The ability of the AMT to move air much faster than its diaphragm physically moves—as previously noted, approximately four times faster—translates into higher sound pressure levels and a broader frequency response than what is achievable with conventional tweeters. This feature is crucial for delivering powerful sound output from a compact device, which is particularly advantageous in space-constrained setups.

Integration in Fluance’s High-Fidelity Audio Applications

In practical applications, as exemplified by our flagship - reference series products at Fluance, the Ri71 bookshelf speakers, and the Ri91 floor-standing speakers, the benefits of AMT technology are clearly evident. These speakers utilize AMT tweeters to enhance the clarity and dynamic range of audio playback, delivering a sound that is immersive and richly detailed. This integration highlights our commitment to leveraging advanced audio technology to enhance the listening experience, affirming the superior performance of AMT tweeters in both professional settings and home audio systems.

Performance Metrics and Testing

Performance metrics are critical for evaluating the efficacy of any audio component, and AMT ribbon tweeters are no exception. As per our audio expert, key performance indicators for these devices include frequency response range, sound pressure levels (SPL), and distortion metrics. These metrics help quantify the tweeter's ability to handle various audio tasks and its overall sound quality.

• • Frequency Response Range: AMT tweeters are renowned for their wide frequency response, typically ranging from about 2,000 Hz to well over 30,000 Hz. This wide range allows them to reproduce the subtleties of music with greater fidelity. The frequency response describes how evenly a speaker reproduces all frequencies of audio signals and is crucial for ensuring balanced sound without coloration.

• • Sound Pressure Levels: SPL measures the loudness a speaker can achieve at a given power level and is usually noted in decibels (dB). AMT tweeters are capable of very high SPLs, making them suitable for both home audio systems where nuanced sound at reasonable volumes is appreciated, and professional settings where high volume with clarity is necessary.

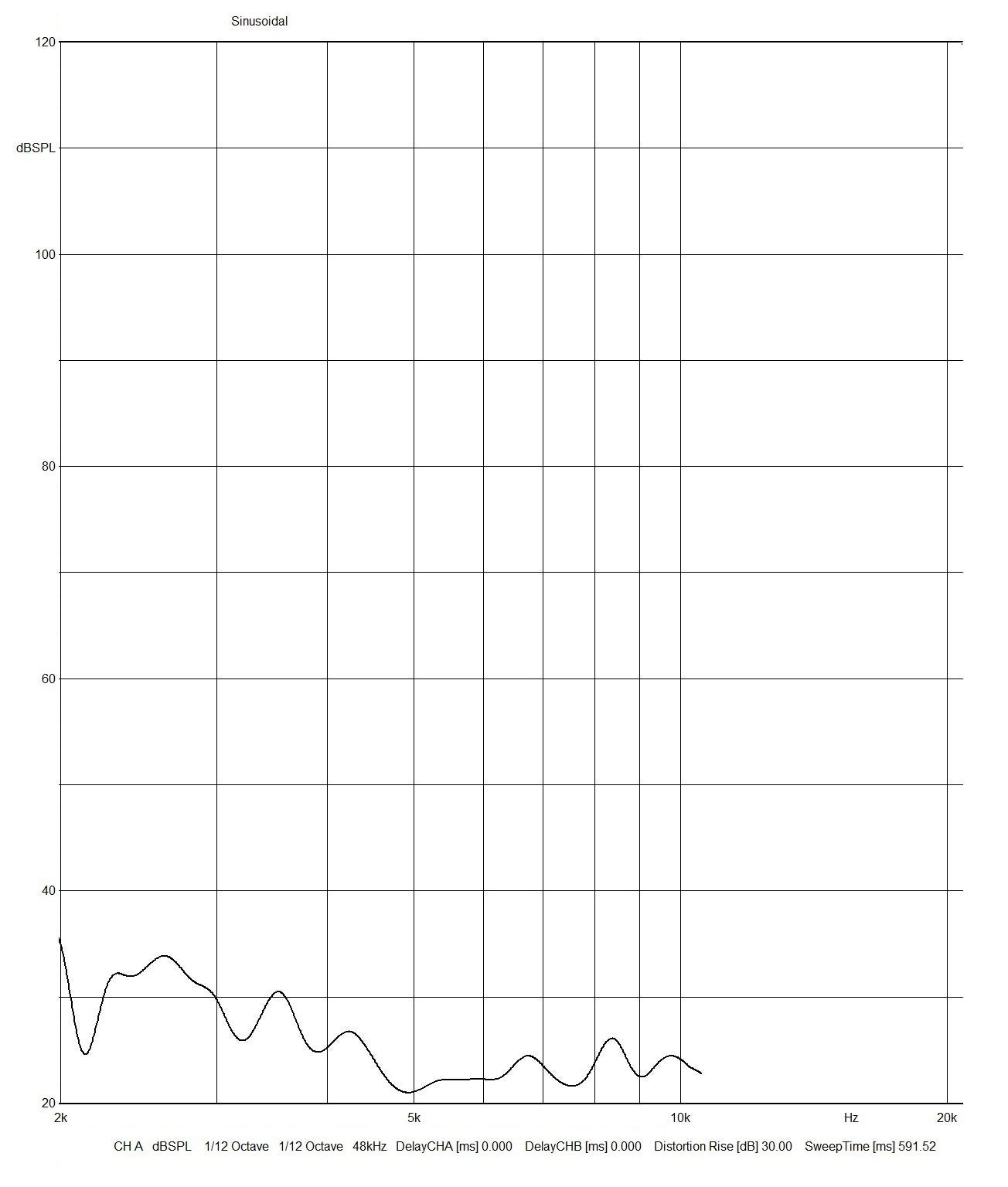

• • Distortion Metrics: Low distortion is a hallmark of high-quality audio devices, and AMT tweeters excel here. Distortion metrics assess how accurately a speaker converts an electrical signal into sound without unintended alterations. Thanks to the uniform movement of the pleated diaphragm in AMTs, these tweeters maintain very low distortion levels, even at high frequencies and SPLs.

Testing methods for these metrics typically involve both laboratory measurements and subjective listening tests. In a lab, speakers are placed in an anechoic chamber to eliminate reflections and background noise. Sophisticated equipment is used to measure frequency response curves, SPL capabilities, and harmonic distortion under various conditions. Subjective tests, often conducted by experienced sound engineers, complement these measurements by assessing the sound quality in real-world environments. Comparative tests against other tweeter technologies, like dome and cone tweeters, usually reveal that AMTs offer superior clarity, especially in the high-frequency range, with more consistent performance across different listening levels and less perceptible distortion. Our Research and Development team at Fluance invested years of research to include the AMT Tweeters in our products and optimize them in a way that it enhances the high-frequency range and clarity down to the mid/vocal range. This dedication to superior audio performance has not gone unnoticed; both speakers have garnered acclaim from critics and enthusiastic praise from listeners alike.

Real-World Applications of AMT Tweeters

AMT ribbon tweeters find their place in various high-demand audio applications due to their superior sound quality and reliable performance. Here are some detailed case studies and examples:

1. Professional Audio Production: In recording studios, especially those that specialize in high-resolution audio, AMT tweeters are prized for their accurate reproduction of sound. For instance, a notable recording studio in Nashville uses AMT tweeters extensively to ensure that the music recorded is as close to the original performance as possible, providing artists and technicians with a true-to-life auditory experience.
2. High-End Consumer Audio Systems: At Fluance, we have incorporated AMT tweeters into our flagship bookshelf speaker, the Ri71, and our tower speaker, the Ri91. These models represent the pinnacle of our audio engineering efforts, utilizing the advanced capabilities of AMT tweeters to deliver unparalleled sound quality. The Ri71 and Ri91 have been meticulously designed to harness exceptional clarity and dynamic range, ensuring that every nuance of sound is faithfully reproduced. This would not have been achievable without using the best of the AMT technology.
3. Innovative Uses in Public Venues: AMT tweeters are also used in venues where clear sound delivery over large areas is crucial. For example, a concert hall in Berlin has integrated AMT tweeters into its main sound system to improve sound distribution and fidelity. This setup ensures that every seat in the house experiences optimal sound quality, from the front rows to the back.

Each of these examples demonstrates the flexibility and high performance of AMT tweeters across different settings and applications. Their ability to deliver clear, detailed sound makes them ideal for both professional and leisure environments where audio quality cannot be compromised.

Future Trends in Tweeter Technology

As technology advances, the development of tweeter technologies continues to evolve, with a promising future for ribbon tweeters due to their superior sound quality and innovative designs:

1. Material Advances: Research into new materials such as graphene and other carbon composites could lead to even lighter and more responsive ribbon tweeters. These materials offer potential improvements in durability and performance under extreme conditions.
2. Digital Integration: With the rise of digital processing technologies, there are opportunities to integrate more advanced signal processing capabilities directly with tweeter technologies. This integration can optimize performance for specific environments and content, potentially extending the capabilities of ribbon tweeters beyond traditional setups.
3. Sustainable Manufacturing: As environmental concerns become more prominent, there is a push towards more sustainable production methods in the audio equipment industry. This includes finding ways to manufacture ribbon tweeters that minimize environmental impact while maintaining or improving audio quality.

Ribbon tweeters, particularly AMT models, represent the pinnacle of sound reproduction technology. With their ability to deliver detailed and dynamic audio across a wide range of applications, they continue to be a top choice for both professional audio engineers and home audio enthusiasts. The ongoing developments in materials and technology promise to further enhance the capabilities of ribbon tweeters, securing their place in the future of high-fidelity audio systems.
