Reference RT84 High Fidelity Vinyl Turntable with PA10 Phono Preamp and Ai60 6.5” Powered Bookshelf Speakers

Ortofon 2M Blue Cartridge - 100W Class D Amplifier and aptX Bluetooth

$854.99 USD

This product is Discontinued

Reference RT84 High Fidelity Vinyl Turntable with PA10 Phono Preamp and Ai60 6.5” Powered Bookshelf Speakers
Reference RT84 High Fidelity Vinyl Turntable with PA10 Phono Preamp and Ai60 6.5” Powered Bookshelf Speakers
EXCEPTIONAL SOUND PERFORMANCE

EXCEPTIONAL SOUND PERFORMANCE

Savor the ultimate listening experience by pairing a fully loaded high fidelity turntable with endlessly versatile, room-filling 100-watt powered bookshelf speakers

PREMIUM TURNTABLE COMPONENTS

PREMIUM TURNTABLE COMPONENTS

Packed with high performance components including an Ortofon 2M Blue Cartridge, servo motor, solid wood plinth, 3-point vibration isolation feet, S-type precision tonearm to provide a pure analog sound

POWERFUL SPEAKERS

VERSATILE AND POWERFUL SPEAKERS

With an integrated 100W Class D amplifier, 1 inch silk dome tweeters and 6.5 inch high performance woven drivers, these active speakers deliver stunning acoustic accuracy

UNCOMPROMISED PHONO AMPLIFICATION

UNCOMPROMISED PHONO AMPLIFICATION & EQUALIZATION

Precisely converts the turntable phono signal to line level, featuring an ultra high-accuracy frequency response to faithfully reproduce the original recording to the RIAA standard

SIMPLE AUDIO SETUP

SIMPLE AUDIO SETUP

Easily switch between your vinyl records and streaming your favorite music apps through Bluetooth aptX with this simple plug and play setup – no separate amp required

Everything you need for the ultimate music experience in one convenient package. Hear breathtaking stereo sound with the Fluance Reference High Fidelity Turntable paired with the RIAA Equalized PA10 Phono Preamp connected to the powerful Ai60 6.5” Powered Bookshelf Speakers for a pure analog listening experience.

Exceptional Sound Performance
The Reference Turntables offer unparalleled vinyl music playback that achieve the purest sound reproduction. When you want the best in music performance, pull out your favorite records, drop the needle, and immerse yourself in the music.

Premium Turntable Components
Savor the rich sound of the Ortofon 2M Blue elliptical stylus delivering improved linearity, higher channel separation and reduced distortion. The servo-controlled belt drive motor maintains an accurate speed while the metal platter, solid wood plinth and vibration isolation feet inhibit the transfer of unwanted resonance allowing for greater low frequency signal pickup and improved imaging.

Powerful Speakers
The Ai60 speakers include an integrated 100W class D amplifier that delivers a robust, powerful sound. The silk soft-dome tweeters produce natural highs, while the woven, glass fiber drivers round out the performance with detailed mids and deep bass, putting you in the center of the performance.

Uncompromised Phono Amplification & Equalization
The PA10 precisely converts the turntable phono signal to line level, allowing you to connect your turntable to your amplifier, featuring a highly accurate frequency response to faithfully reproduce the original recording and achieve a flat RIAA equalization curve. Listen to your records with stunning analog warmth and spectacular clarity.

Simple Audio Setup
This plug and play system easily connects your turntable to the speakers without the need for a separate amplifier or AV receiver. Once the record finishes, a simple push of the button on the included remote control lets you switch over to aptX enhanced Bluetooth to stream all your favorite music apps.

Specifications

PA10 High Fidelity Phono Preamp

Specifications
Audio Specifications
Audio Circuit Type Passively Equalized RIAA
Compatible Stylus MM
Gain 38 dB
Phono Input Sensitivity 30 mV
Total Harmonic Distortion (THD) 0.00%
RIAA Equalization Accuracy (deviation) 20 Hz - 20 kHz +/- 0.5 dB
Signal/Noise (S/N) Ratio > 90 dB
Crosstalk > -86 dB
Input Impedance 47 kohm
Input Load Capacitance 100 pF
Output Impedance 100 ohm
Output Voltage 2.2 V
Maximum Input @ 1 kHz 100 mV
Maximum Phono Stage Output 125 mV
High Pass Filter Cutoff 20 Hz
Dynamic Range > 85 dB
Input/Output Specifications
Input RCA L/R (Gold Plated)
Output RCA L/R (Gold Plated)
Ground Terminal Yes
Cabinet Specifications
Cabinet Material MDF
Finish PVC Wood
Color Black
Power Specification
Power Input 110 V - 240 V ~ 50/60 Hz 0.5 A
Power Adapter Output 24 V, 500 mA
Power Consumption 0.4 W
General Specifications
Dimensions 4(L) x 2.25(H) x 3.6(D) inches (101.5 x 57.1 x 91.5 mm)
Weight 11.5 oz (325 g)
Operating Temperature -5°C - 45°C
Noise Floor (Unweighted) < 220 uV
Compatible With Fluance RT80, RT81, RT82, RT83, RT84, and RT85 turntables as well as any turntables that are equipped with a Moving Magnet cartridge
UPC 061783269794
What's Included

PA10 Preamplifier Lineout

Click to Expand

  • PA10 Unit
  • Power Adapter
  • User Manual
  • Fluance Catalog
  • Lifetime Customer Support
  • 2 Year Manufacturer’s Warranty
  • Ai60 High Performance Powered 6.5” Bookshelf Speakers

    Specifications
    Speaker Type Bookshelf
    Speaker Configuration 2 Way – 2 Driver Powered Bookshelf Speaker System with Integrated Amplifier (Pair)
    Enclosure Acoustic Suspension Design
    Tweeter 1 inch Silk Soft Dome Ferrofluid Cooled
    Woofer 6.5 inch Woven, Glass Fiber Composite Drivers with Butyl Rubber Surrounds
    Amplifier Power Class D 100 Watts Continuous Average Output (2x 50 watts)
    Frequency Response 35Hz – 20KHz (DSP Virtual Sound)
    Crossover Frequency 2600Hz Phase Coherent – PCB Mounted Circuitry
    Bluetooth Yes; aptX Codec
    Audio Inputs RCA L/R, Digital Toslink Optical, Micro USB
    Internal Lead Wire 18 gauge Internal Lead Wire to Reduce Signal Degradation
    Internal DAC Cirrus Logic CS8416
    WiFi Casting Pairs via Bluetooth with Google Home, Amazon Echo and AppleTV (Ai60 is not a WiFi speaker)
    Total Harmonic Distortion (THD) <0.3%
    Power Input 100-240V AC (50/60Hz)
    Power Adapter Output 24V 3.0A
    Dimensions 13.1 x 7.8 x 9.2 inches / 33.3 x 19.8 x 23.4 cm (HxWxD)
    Speaker Weight Active Speaker: 14.55 lbs
    Passive Speaker: 14.1 lbs
    Frequency Response Graph

    Click to Expand

    HFF Frequency Graph

    How to Read an SPL Graph

    Fluance Speaker Size Comparison Chart

    Click to Expand

    Fluance Size Comparison Chart

    Certifications ICES, FCC Certified, ETL/CETL
    UPC 871363024817
    What's Included

    Ai60 Speaker Line Out

    Click to Expand

    Ai60 Speaker Line Out

    • Fluance Ai60 Powered Bookshelf Speakers (pair)
    • Remote Control
    • 2x AAA Batteries
    • 8ft 100-240V Power Adapter
    • 8ft 18 Gauge Speaker Wire
    • 3ft 3.5mm Aux to RCA Cable
    • Quick Start Guide
    • Fluance Catalog
    • Lifetime Customer Support
    • 2 Year Manufacturer’s Warranty

    Premium Grade Low Capacitance RCA Audio Cable (3 Feet)

    Specifications
    Compatible With RT80, RT81, RT82, RT83, RT84, RT85, PA10
    Length 3'
    UPC 61783269053
    What's Included
  • 3 Foot Premium Grade RCA Audio Cable
  • Lifetime Customer Support
  • 2 Year Manufacturer’s Warranty
  • RT84 Reference High Fidelity Vinyl Turntable

    Specifications
    Cabinet Specifications
    Cabinet Material MDF
    Finish High Gloss Walnut Real Wood Veneer
    Dust Cover Yes - Tinted
    Turntable Specifications
    Drive System Belt Drive
    Motor DC Motor with Servo Controller Analyzes motor speed 500 times/sec
    Motor Isolation Under-mounted 7-point silicone isolation with decoupling isolation ring
    Speed 33 1/3 RPM, 45 RPM (78 RPM - No)
    Speed Variation 0.13%
    Wow and Flutter 0.07%
    Signal-to-Noise Ratio (Weighted) 76 dB
    Signal-to-Noise Ratio (Unweighted) 65 dB
    Platter Aluminium
    Diameter of Platter 12 inches (30 cm)
    Weight of Platter 1.22 lbs (553 g)
    Height of Platter 0.62 inches (16 mm)
    Auto-Stop Yes
    Turntable Mat Rubber
    Tonearm Type Static Balanced, S-Type
    Supported Cartridge Weight 0.18 – 0.25 oz (5.0 – 7.5 g)
    Counterweight Yes – 3.60 oz (102 g) - Adjustable
    Anti-skating Adjustment Yes – Adjustable
    Pivot Bearing Yes
    Cueing Lever Yes
    Tonearm Material Aluminum
    Tonearm Wire 36 AWG Litz Cable / 7 Strand
    Effective Tonearm Mass 0.97 oz (27.5 g)
    Overhang 0.76 inches (19.2 mm)
    Effective Tonearm Length 8.82 inches (224 mm)
    Headshell Mount H-4 Bayonet Mount
    Cartridge Type Moving Magnet (MM)
    Cartridge Model Ortofon: 2M Blue
    Replacement Stylus Stylus 2M Blue
    Stylus 0.3 x 0.7 mil
    Cantilever Aluminum
    Mount Half-inch
    Frequency Response 20 - 20,000 Hz (+2/-1 dB)
    Frequency Range 20 - 25,000 Hz (-3 dB)
    Channel Separation 25 dB at 1 kHz
    Channel Balance 1.5 dB @ 1 kHz
    Load Impedance/Capacitance 47k Ohms/150 - 300 pF
    Output Voltage 5.5 mV
    Cartridge Weight 0.25 oz (7.2 g)
    Headshell Weight 0.35 oz (9 g)
    Cartridge Height 0.71 inches (18 mm)
    Recommended Tracking Force 0.06 - 0.07 oz (1.6 - 2.0 g)
    Vertical Tracking Angle 20° (Non-Adjustable)
    Rubber Belt Specifications
    Rubber Belt Design Continuous loop (joint-less)
    Width 0.17 inches (4.5 mm)
    Length 36.02 inches (915 mm)
    Thickness 0.02 inches (0.6 mm)
    Connector RCA (Gold-plated)
    Phono Preamp No - Separate Phono Preamp Required
    Phono Output 5.5 mV
    Phono Bypass N/A
    Line Output N/A
    Ground Terminal Yes
    Input 100 – 240 V AC (50/60 Hz)
    Output 12 V / 500 mA
    Consumption 1.5 W
    Dimensions 6 (+/-0.5) x 16.5 x 14.25 inches / 14.6 (+/-1.25) x 41.9 x 36.2 cm (HxWxD)
    Unit Weight 14.99 lb (6.8 kg)
    Operating Temperature 41°F to 95°F (5°C to 35°C)
    Wireless Playback No (Requires Bluetooth or WiFi transmitter connected via RCA connection to transmit audio wirelessly)
    Fluance Speaker Size Comparison Chart

    Click to Expand

    Fluance Size Comparison Chart

    Certifications FCC Certified, RoHS, CUL/UL
    UPC 061783270394

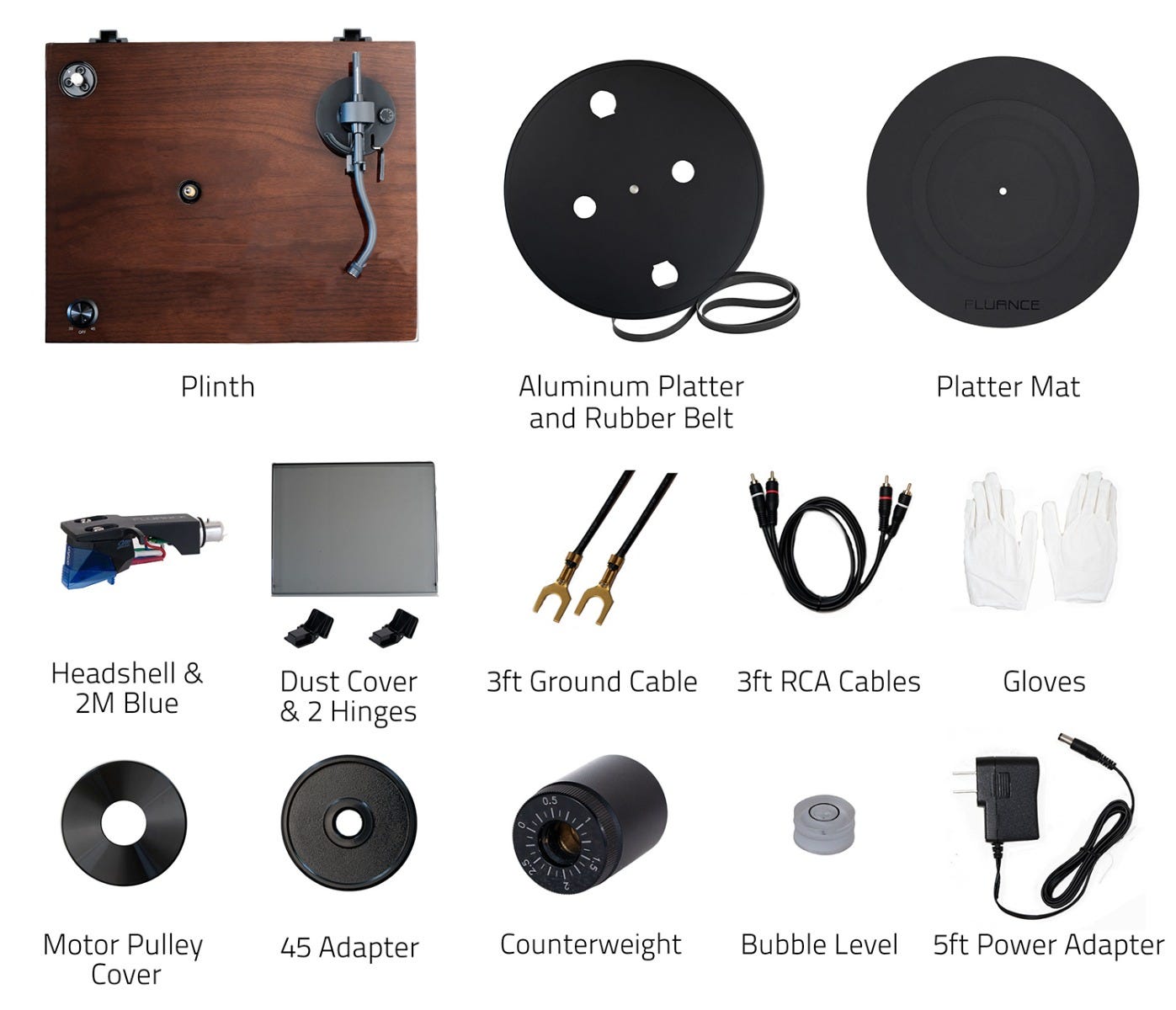

    What's Included

    RT84 Reference Turntable Line Out

    Click to Expand

    RT83 Reference Turntable Line Out


  • RT84W Turntable
  • Dust Cover + Hinges
  • Bubble Level
  • Headshell with Ortofon 2M Blue Cartridge
  • Counterweight (CW02)
  • Metal Platter with Belt
  • Rubber Platter Mat
  • 5ft 100 - 240 V (50/60Hz) AC Power Adapter
  • 3ft 90pF RCA Cable (CA03)
  • 3ft Ground Wire (GW03)
  • 45 Adaptor
  • Motor Pulley Cap
  • Cotton Gloves
  • User Manual
  • Lifetime Customer Support
  • 2 Year Manufacturer’s Direct Warranty
  • The RT84 underwent a slight component change since initial launch. The cartridge has been upgraded from the Ortofon 2M Red to the Ortofon 2M Blue. The acrylic platter has also been replaced with the aluminum platter. Pricing remains the same.
  • What's Included
