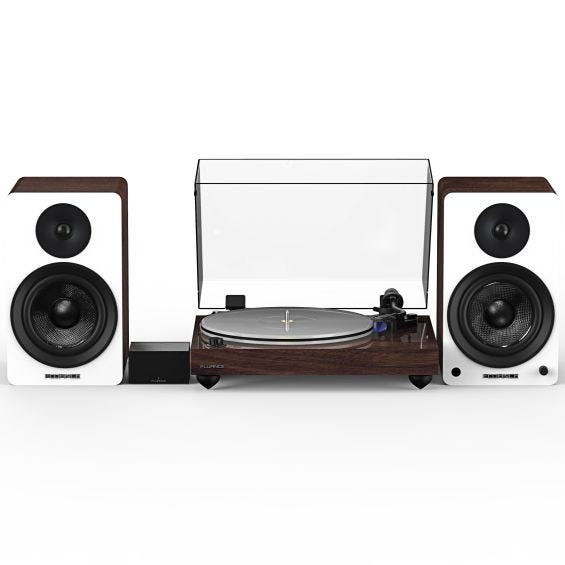

Reference RT85 High Fidelity Vinyl Turntable with PA10 Phono Preamp and Ai60 6.5” Powered Bookshelf Speakers
Ortofon 2M Blue Cartridge, Acrylic Platter - 100W Class D Amplifier and aptX Bluetooth
$912.99
This product is Discontinued
Recommended Item:
Reference RT85 High Fidelity Vinyl Turntable with PA10 Phono Preamp and Ai61 Powered 6.5” Stereo Bookshelf Speakers
Learn More
EXCEPTIONAL SOUND PERFORMANCE
Savor the ultimate listening experience by pairing a fully loaded high fidelity turntable with endlessly versatile, room-filling 100-watt powered bookshelf speakers
PREMIUM TURNTABLE COMPONENTS
Packed with high performance components including an Ortofon 2M Blue Cartridge, acrylic platter, servo motor, solid wood plinth, 3-point vibration isolation feet, S-type precision tonearm to provide a pure analog sound
VERSATILE AND POWERFUL SPEAKERS
With an integrated 100W Class D amplifier, 1 inch silk dome tweeters and 6.5 inch high performance woven drivers, these active speakers deliver stunning acoustic accuracy
UNCOMPROMISED PHONO AMPLIFICATION & EQUALIZATION
Precisely converts the turntable phono signal to line level, featuring an ultra high-accuracy frequency response to faithfully reproduce the original recording to the RIAA standard
SIMPLE AUDIO SETUP
Easily switch between your vinyl records and streaming your favorite music apps through Bluetooth aptX with this simple plug and play setup – no separate amp required
Everything you need for the ultimate music experience in one convenient package. Hear breathtaking stereo sound with the Fluance Reference High Fidelity Turntable paired with the RIAA Equalized PA10 Phono Preamp connected to the powerful Ai60 6.5” Powered Bookshelf Speakers for a pure analog listening experience.
Exceptional Sound Performance
The Reference Turntables offer unparalleled vinyl music playback that achieve the purest sound reproduction. When you want the best in music performance, pull out your favorite records, drop the needle, and immerse yourself in the music.
Premium Turntable Components
Savor the rich sound of the Ortofon 2M Blue elliptical stylus delivering improved linearity, higher channel separation and reduced distortion. The servo-controlled belt drive motor maintains an accurate speed while the acrylic platter, solid wood plinth and vibration isolation feet inhibit the transfer of unwanted resonance allowing for greater low frequency signal pickup and improved imaging.
Powerful Speakers
The Ai60 speakers include an integrated 100W class D amplifier that delivers a robust, powerful sound. The silk soft-dome tweeters produce natural highs, while the woven, glass fiber drivers round out the performance with detailed mids and deep bass, putting you in the center of the performance.
Uncompromised Phono Amplification & Equalization
The PA10 precisely converts the turntable phono signal to line level, allowing you to connect your turntable to your amplifier, featuring a highly accurate frequency response to faithfully reproduce the original recording and achieve a flat RIAA equalization curve. Listen to your records with stunning analog warmth and spectacular clarity.
Simple Audio Setup
This plug and play system easily connects your turntable to the speakers without the need for a separate amplifier or AV receiver. Once the record finishes, a simple push of the button on the included remote control lets you switch over to aptX enhanced Bluetooth to stream all your favorite music apps.
Exceptional Sound Performance
The Reference Turntables offer unparalleled vinyl music playback that achieve the purest sound reproduction. When you want the best in music performance, pull out your favorite records, drop the needle, and immerse yourself in the music.
Premium Turntable Components
Savor the rich sound of the Ortofon 2M Blue elliptical stylus delivering improved linearity, higher channel separation and reduced distortion. The servo-controlled belt drive motor maintains an accurate speed while the acrylic platter, solid wood plinth and vibration isolation feet inhibit the transfer of unwanted resonance allowing for greater low frequency signal pickup and improved imaging.
Powerful Speakers
The Ai60 speakers include an integrated 100W class D amplifier that delivers a robust, powerful sound. The silk soft-dome tweeters produce natural highs, while the woven, glass fiber drivers round out the performance with detailed mids and deep bass, putting you in the center of the performance.
Uncompromised Phono Amplification & Equalization
The PA10 precisely converts the turntable phono signal to line level, allowing you to connect your turntable to your amplifier, featuring a highly accurate frequency response to faithfully reproduce the original recording and achieve a flat RIAA equalization curve. Listen to your records with stunning analog warmth and spectacular clarity.
Simple Audio Setup
This plug and play system easily connects your turntable to the speakers without the need for a separate amplifier or AV receiver. Once the record finishes, a simple push of the button on the included remote control lets you switch over to aptX enhanced Bluetooth to stream all your favorite music apps.
Specifications
PA10 High Fidelity Phono Preamp
| Audio Specifications | |
|---|---|
| Audio Circuit Type | Passively Equalized RIAA |
| Compatible Stylus | MM |
| Gain | 38 dB |
| Phono Input Sensitivity | 30 mV |
| Total Harmonic Distortion (THD) | 0.00% |
| RIAA Equalization Accuracy (deviation) | 20 Hz - 20 kHz +/- 0.5 dB |
| Signal/Noise (S/N) Ratio | > 90 dB |
| Crosstalk | > -86 dB |
| Input Impedance | 47 kOhm |
| Input Load Capacitance | 100 pF |
| Output Impedance | 100 Ohm |
| Output Voltage | 2.2 V |
| Maximum Input @ 1 kHz | 100 mV |
| Maximum Phono Stage Output | 125 mV |
| High Pass Filter Cutoff | 20 Hz |
| Dynamic Range | > 85 dB |
| Input/Output Specifications | |
| Input | RCA L/R (Gold Plated) |
| Output | RCA L/R (Gold Plated) |
| Ground Terminal | Yes |
| Cabinet Specifications | |
| Cabinet Material | MDF |
| Finish | PVC Wood |
| Color | Black |
| Power Specification | |
| Power Input | 110-240 V (50/60 Hz) 0.5 A |
| Power Adapter Output | 24 V, 500 mA |
| Power Consumption | 0.4 W |
| General Specifications | |
| Dimensions | 4 x 2.25 x 3.6 inches / 101.5 x 57.1 x 91.5 mm (LxHxD) |
| Weight | 11.5 oz (325 g) |
| Operating Temperature | -5° - 45°C |
| Noise Floor (Unweighted) | < 220 uV |
| Compatible With | Fluance RT80, RT81, RT81P, RT82, RT83, RT84, RT85 and RT85N turntables as well as any turntables that are equipped with a Moving Magnet cartridge |
| UPC | 061783269794 |
| What's Included | |
Ai60 High Performance Powered 6.5” Bookshelf Speakers
| Speaker Type | Bookshelf |
|---|---|
| Speaker Configuration | 2 Way – 2 Driver Powered Bookshelf Speaker System with Integrated Amplifier (Pair) |
| Enclosure | Acoustic Suspension Design |
| Tweeter | 1 inch Silk Soft Dome Ferrofluid Cooled |
| Woofer | 6.5 inch Woven, Glass Fiber Composite Drivers with Butyl Rubber Surrounds |
| Amplifier Power | Class D 100 Watts Continuous Average Output (2x 50 watts) |
| Frequency Response | 35Hz – 20KHz (DSP Virtual Sound) |
| Crossover Frequency | 2600Hz Phase Coherent – PCB Mounted Circuitry |
| Bluetooth | Yes; aptX Codec |
| Audio Inputs | RCA L/R, Digital Toslink Optical, Micro USB |
| Internal Lead Wire | 18 gauge Internal Lead Wire to Reduce Signal Degradation |
| Internal DAC | Cirrus Logic CS8416 |
| WiFi Casting | Pairs via Bluetooth with Google Home, Amazon Echo and AppleTV (Ai60 is not a WiFi speaker) |
| Total Harmonic Distortion (THD) | <0.3% |
| Power Input | 100-240V AC (50/60Hz) |
| Power Adapter Output | 24V 3.0A |
| Dimensions | 13.1 x 7.8 x 9.2 inches / 33.3 x 19.8 x 23.4 cm (HxWxD) |
| Speaker Weight | Active Speaker: 14.55 lbs Passive Speaker: 14.1 lbs |
| Frequency Response Graph | Click to Expand |
| Fluance Speaker Size Comparison Chart |
|
| Certifications | ICES, FCC Certified, ETL/CETL |
| UPC | 871363024817 |
| What's Included | Ai60 Speaker Line OutClick to Expand
|
Premium Grade Low Capacitance RCA Audio Cable (3 Feet)
| Compatible With | RT80, RT81, RT82, RT83, RT84, RT85, PA10 |
|---|---|
| Length | 3' |
| UPC | 61783269053 |
| What's Included |
RT85 Reference High Fidelity Vinyl Turntable
| Cabinet Specifications | |
|---|---|
| Cabinet Material | MDF |
| Finish | High Gloss Walnut Real Wood Veneer |
| Dust Cover | Yes - Tinted |
| Turntable Specifications | |
| Drive System | Belt Drive |
| Motor | DC Motor with Servo Controller Analyzes motor speed 500 times/sec |
| Motor Isolation | Under-mounted 7-point silicone isolation with decoupling isolation ring |
| Speed | 33 1/3 RPM, 45 RPM (78 RPM - No) |
| Speed Variation | 0.10% |
| Wow and Flutter | 0.07% |
| Signal-to-Noise Ratio (Weighted) | 76 dB |
| Signal-to-Noise Ratio (Unweighted) | 65 dB |
| Platter | Acrylic |
| Diameter of Platter | 12 inches (30 cm) |
| Weight of Platter | 3 lb (1.56 kg) |
| Height of Platter | 0.62 inches (16 mm) |
| Auto-Stop | Yes |
| Fully Automatic | No |
| Turntable Mat | Not Required |
| Tonearm Specifications | |
| Tonearm Type | Static Balanced, S-Type |
| Supported Cartridge Weight | 0.18 – 0.25 oz (5.0 – 7.5 g) |
| Counterweight | Yes – 3.60 oz (102 g) - Adjustable |
| Anti-skating Adjustment | Yes – Adjustable |
| Pivot Bearing | Yes |
| Cueing Lever | Yes |
| Tonearm Material | Aluminum |
| Tonearm Wire | 36 AWG Litz Cable / 7 Strand |
| Effective Tonearm Mass | 0.97 oz (27.5 g) |
| Overhang | 0.76 inches (19.2 mm) |
| Effective Tonearm Length | 8.82 inches (224 mm) |
| Headshell Mount | H-4 Bayonet Mount |
| Headshell Weight | 0.35 oz (9g) |
| Cartridge Specifications | |
| Cartridge Type | Moving Magnet (MM) |
| Cartridge Model | Ortofon: 2M Blue |
| Replacement Stylus | Stylus 2M Blue |
| Stylus | 0.3 x 0.7 mil |
| Cantilever | Aluminum |
| Mount | Half-inch |
| Frequency Response | 20 - 20,000 Hz (+2/-1 dB) |
| Frequency Range | 20 - 25,000 Hz (-3 dB) |
| Channel Separation | 25 dB at 1 kHz |
| Channel Balance | 1.5 dB @ 1 kHz |
| Load Impedance/Capacitance | 47k Ohms/150 - 300 pF |
| Output Voltage | 5.5 mV |
| Cartridge Weight | 0.25 oz (7.2g) |
| Cartridge Height | 0.71 inches (18 mm) |
| Vertical Tracking Angle | 20° (Non-Adjustable) |
| Rubber Belt Specifications | |
| Rubber Belt Design | Continuous loop (joint-less) |
| Width | 0.17 inches (4.5 mm) |
| Length | 36.02 inches (915 mm) |
| Thickness | 0.02 inches (0.6 mm) |
| Output Specifications | |
| Connector | RCA (Gold-plated) |
| Phono Preamp | No - Separate Phono Preamp Required |
| Phono Output | 5.5 mV |
| Phono Bypass | N/A |
| Line Output | N/A |
| Ground Terminal | Yes |
| Power Specification | |
| Input | 100–240 V AC (50/60 Hz) |
| Output | 12 V / 500 mA |
| Consumption | 1.5 W |
| General Specifications | |
| Dimensions | 6 (+/-0.5) x 16.5 x 14.25 inches / 14.6 (+/-1.25) x 41.9 x 36.2 cm (HxWxD) |
| Unit Weight | 16.76 lb (7.6 kg) |
| Operating Temperature | 41° to 95°F (5° to 35°C) |
| Wireless Playback | No (Requires Bluetooth or WiFi transmitter connected via RCA connection to transmit audio wirelessly) |
| Fluance Speaker Size Comparison Chart |
|
| Certifications | FCC Certified, RoHS, CUL/UL |
| UPC | 061783270523 |
| What's Included | |

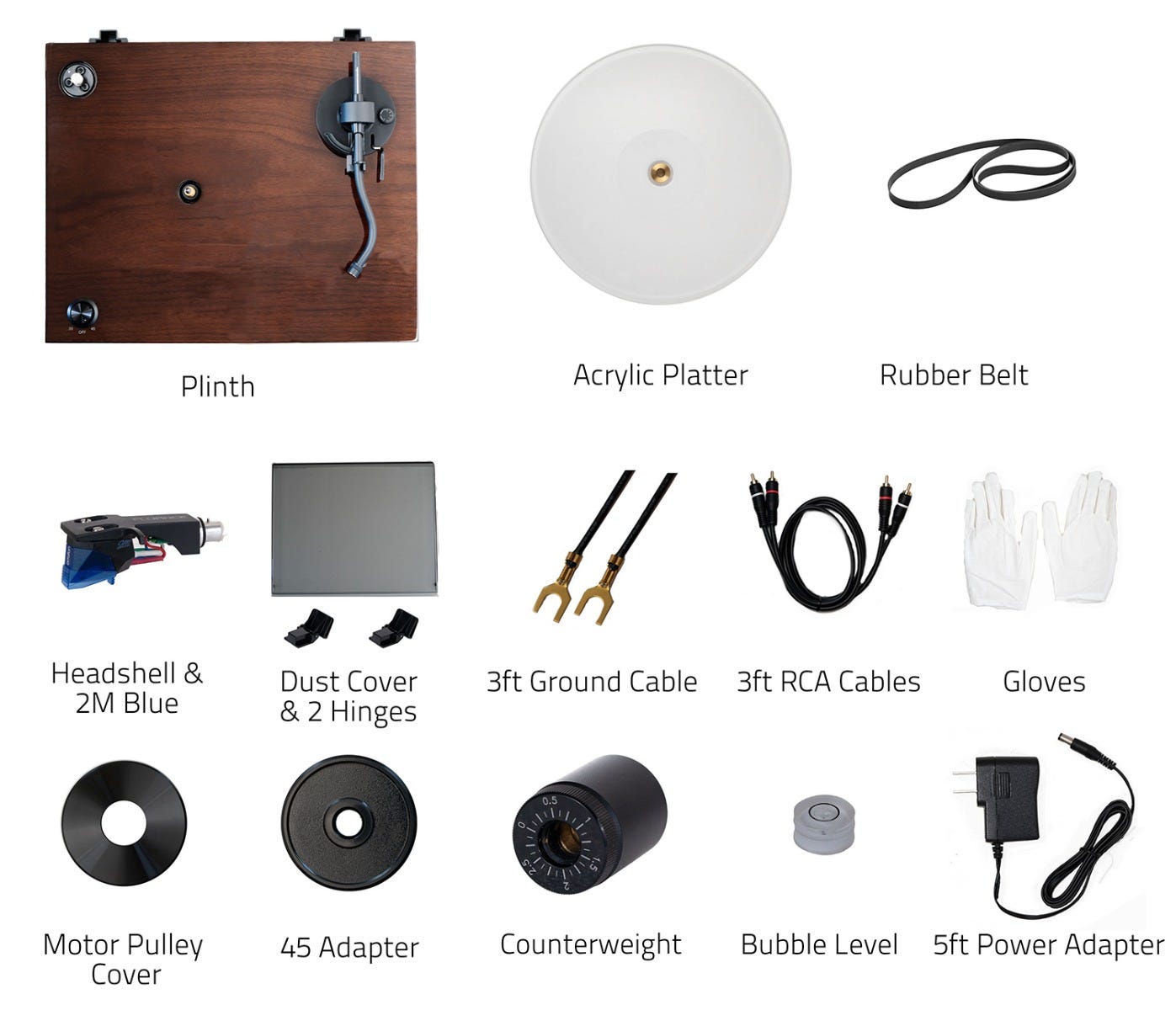

What's Included
