$429.99 USD
Support
Specifications

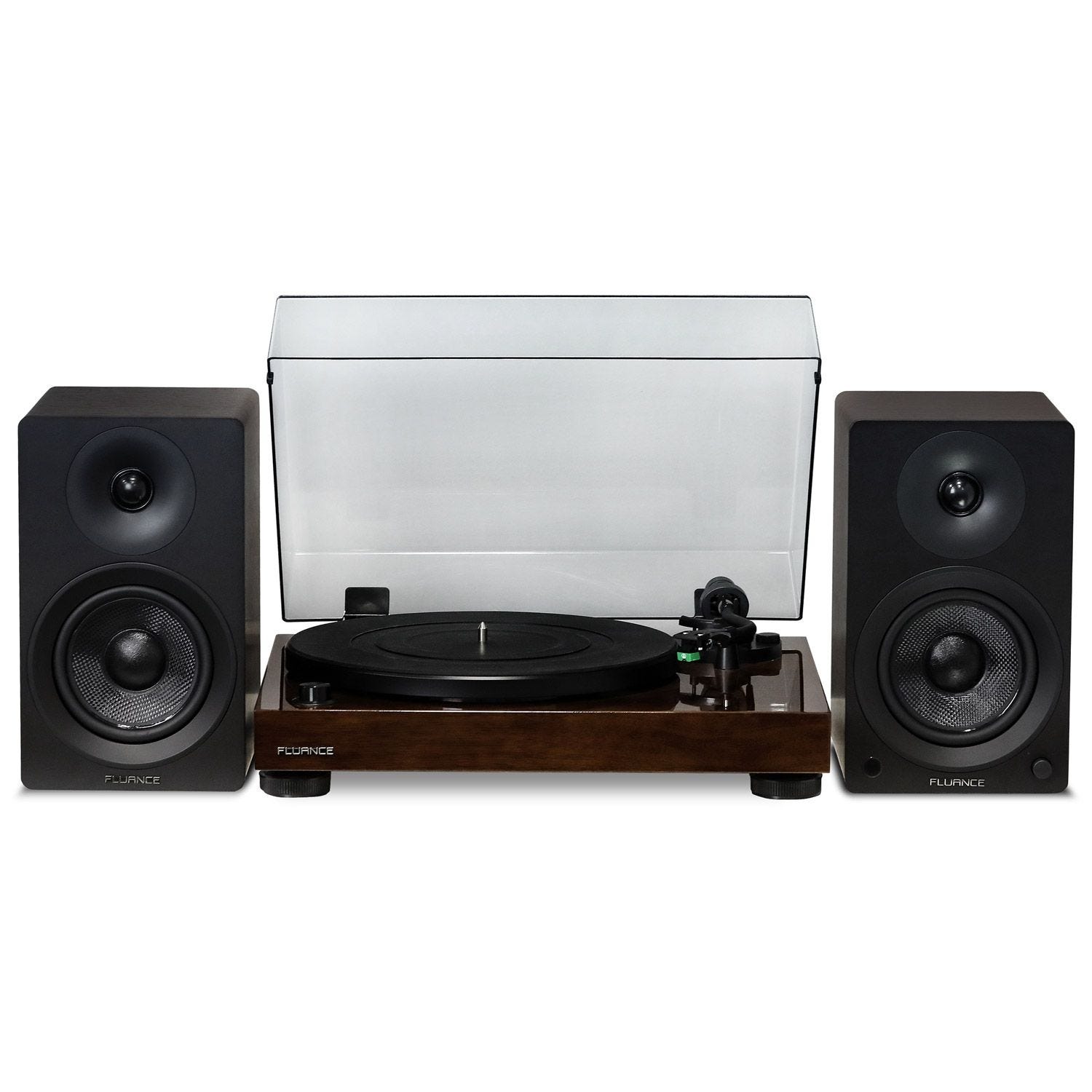

RT81 High Fidelity Vinyl Turntable
| Cabinet Specifications | ▼ |
|---|---|
| Cabinet Material | MDF |
| Finish | High Gloss Walnut Real Wood Veneer |
| Dust Cover | Yes - Tinted |
| Turntable Specifications | ▼ |
| Drive System | Belt Drive |
| Motor | DC Motor with Three Point Rubber Isolation |
| Speed | 33 1/3 RPM, 45 RPM |
| Speed Variation | +/-1.00% - Speed Adjustment Guide |
| Wow and Flutter | 0.2% |
| Signal-to-Noise Ratio (Weighted) | 67dB or higher (A-weighted, 20kHz LPF) |
| Signal-to-Noise Ratio (Unweighted) | 60dB or higher (unweighted, 20kHz LPF) |
| Platter | Aluminum |
| Diameter of Platter | 12", 30cm |
| Auto-Stop | Yes |
| Turntable Mat | Rubber |
| Tonearm Specifications | ▼ |
| Tonearm Type | Static Balanced, S-Type |
| Supported Cartridge Weight | 3.5 to 6.5g |
| Anti-skating Adjustment | Yes |
| Pivot Bearing | Yes |
| Tonearm Material | Aluminum |
| Tonearm Wire | 36 AWG Litz Cable / 7 Strand |
| Effective Tonearm Mass | 28.2 grams |
| Overhang | 19.2mm |
| Effective Tonearm Length | 224mm |
| Headshell Mount | H-4 Bayonet Mount |
| Tonearm Height | 17mm |
| Cartridge Specifications | ▼ |
| Cartridge Type | Dual Moving Magnet (MM) |
| Catridge Model | Audio Technica: AT95E |
| Replacement Stylus | ATN95E |
| Stylus | 0.4 × 0.7mil Bonded Elliptical (Diamond) |
| Cantilever | Aluminum |
| Mount | Half inch |
| Frequency Response | 20-20,000Hz |
| Channel Separation | 20dB at 1kHz |
| Channel Balance | 2.0dB or less at 1kHz |
| Load Impedance/Capacitance | 47k Ohms/100pF |
| Output Voltage | 2.5mV +/–3dB |
| Cartridge Weight | 5.7g (+/- 0.5g) |
| Headshell Weight | 10.7g |
| Recommended Tracking Force | 2.0g +/–0.5g |
| Vertical Tracking Angle | 20 degrees |
| Rubber Belt Specifications | ▼ |
| Width | 4.5mm |
| Length | 534.07mm |
| Thickness | 0.6mm |
| Output Specifications | ▼ |
| Connector | RCA (Gold-plated) |
| Preamp | Yes, PHONO/LINE Switchable |
| Phono Output | 2.5mV +/–3dB |
| Phono Bypass | Yes, all electronics bypassed when using external preamp |
| Line Output | 140mV (–17dBV) |
| Ground Terminal | Yes |
| Power Specification | ▼ |
| Input | 100V - 240V AC (50/60Hz) |
| Output | 12V / 500mA |
| Consumption | 1.5W |
| General Specifications | ▼ |
| Dimensions | 16.5” x 5.5” x 13.75” |
| Certifications | FCC Certified RoHS CUL/UL |
| Unit Weight | 6.4 kg or 14.1 lbs |
| Operating Temperature | 20°C |
| Fluance Speaker Size Comparison Chart | |
| UPC | 061783264362 |
| What's Included |
Ai40 Powered 5” Bookshelf Speakers
| Speaker Configuration | 2 Way – 2 Driver Bookshelf Speaker System with Integrated Amplifier (Pair) |
|---|---|
| Bluetooth | Yes; aptX Codec |
| Inputs | RCA L/R |
| Tweeter | 1 inch Silk Soft Dome Ferrofluid Cooled |
| Woofer | 5 inch Woven Glass Fiber Composite Drivers with Butyl Rubber Surrounds |
| Amplifier Power | Class D 70 Watts Continuous Average Output (2x 35 watts) |
| Frequency Response | 40Hz – 20KHz (DSP Virtual Sound Perceived by Ear) |
| Internal Lead Wire | 18 gauge Internal Lead Wire to Reduce Signal Degradation |
| Power | Input: 100-240V; Output: 19V 3.15A |
| Crossover Frequency | 2600Hz Phase Coherent – PCB Mounted Circuitry |
| Enclosure | Acoustic Suspension Design |
| Dimensions | 10.9 x 6.5 x 7.6 inch |
| Speaker Weight | 15.1 lbs |
| Speaker Type | Bookshelf |
| Certifications | ICES FCC Certified ETL/CETL |
| Subwoofer Output | 0 |

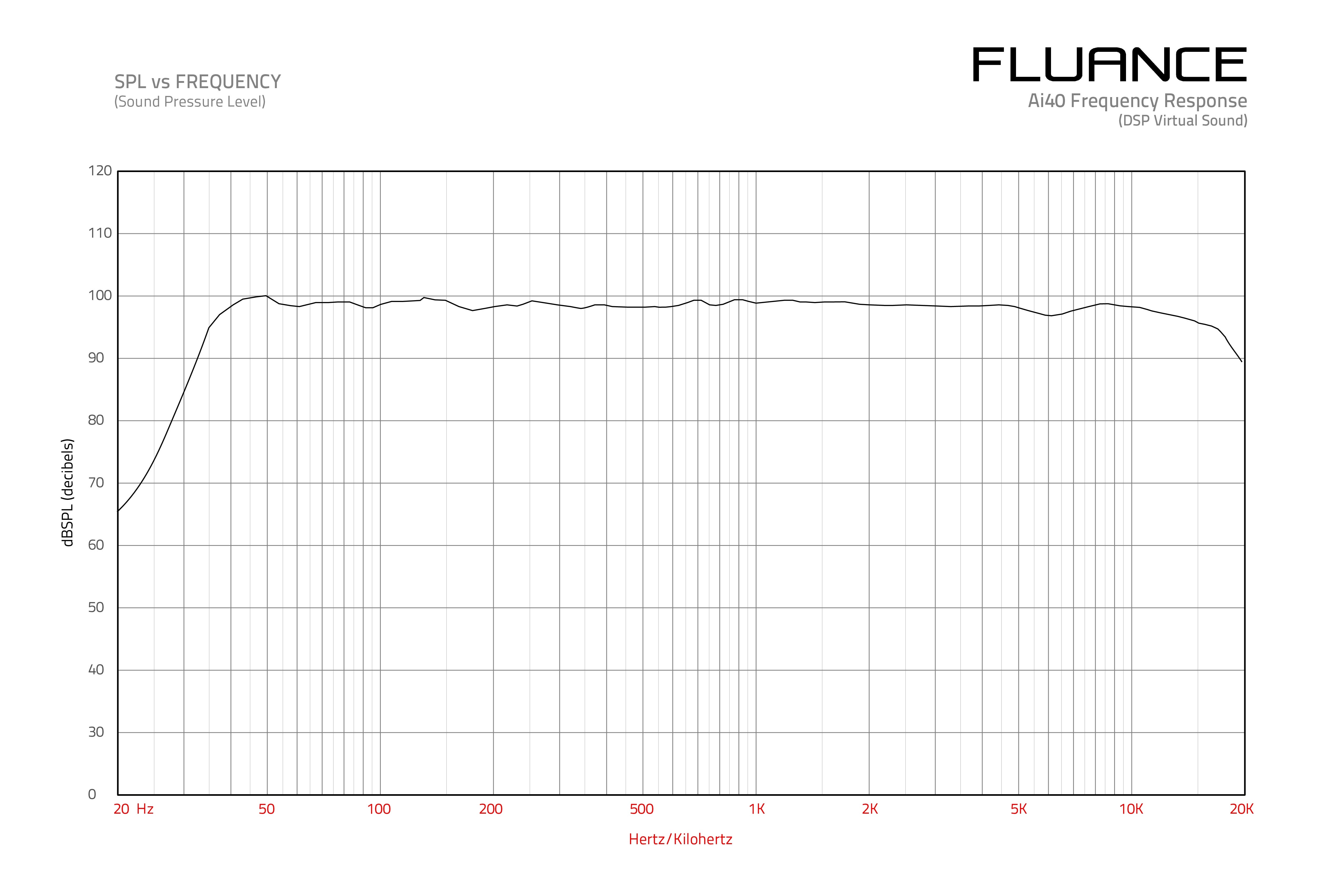

| Frequency Response Graph | Click to Expand |
| UPC | 871363024756 |
| What's Included | Ai40 Speaker Line OutClick to Expand
|
Customer Reviews
-
I purchased this product this summer and couldn’t be happier. Looks great and has amazing warm tone. Awesome setup for the price.
Resources
Manual
Guides
Video
FAQs
Do I need a receiver or amplifier with this bundle? ▼
No! Everything you need to enjoy your favourite albums is included in this bundle.
The Ai40 speakers are powered and the RT80 Turntable includes an internal preamp so no additional equipment is required!
The Ai40 speakers are powered and the RT80 Turntable includes an internal preamp so no additional equipment is required!
Can I install a different cartridge on this turntable? ▼
The tonearm of the RT80 and RT81 model turntables is compatible with cartridges from 3.5 grams to 6.5 grams in weight. For a video walkthrough, click the link below.
