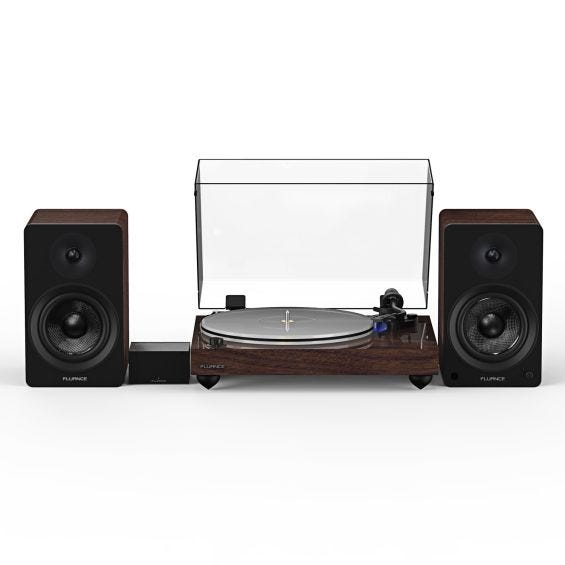

Reference RT85 High Fidelity Vinyl Turntable with PA10 Phono Preamp and Ai41 Powered 5” Stereo Bookshelf Speakers

Ortofon 2M Blue Cartridge, Acrylic Platter - 90W Class D Amplifier and Bluetooth

Rating:
93%
$856.99 USD

Color: Natural Walnut

color-swatchcolor-swatchcolor-swatchcolor-swatchcolor-swatchcolor-swatch

Model:

Reference RT85 High Fidelity Vinyl Turntable with PA10 Phono Preamp and Ai41 Powered 5” Stereo Bookshelf Speakers
Reference RT85 High Fidelity Vinyl Turntable with PA10 Phono Preamp and Ai41 Powered 5” Stereo Bookshelf Speakers
EXCEPTIONAL SOUND PERFORMANCE

EXCEPTIONAL SOUND PERFORMANCE

Savor the ultimate listening experience by pairing a fully loaded high fidelity turntable with endlessly versatile, room-filling 90-watt powered bookshelf speakers

PREMIUM TURNTABLE COMPONENTS

PREMIUM TURNTABLE COMPONENTS

Packed with high performance components including an Ortofon 2M Blue Cartridge, acrylic platter, servo motor, high mass MDF wood plinth, 3-point vibration isolation feet, S-type precision tonearm to provide a pure analog sound

POWERFUL SPEAKERS

VERSATILE AND POWERFUL SPEAKERS

With an integrated 90W Class D amplifier, 1 inch silk dome tweeters and 5 inch high performance woven drivers, these active speakers deliver stunning acoustic accuracy

UNCOMPROMISED PHONO AMPLIFICATION

UNCOMPROMISED PHONO AMPLIFICATION & EQUALIZATION

Precisely converts the turntable phono signal to line level, featuring an ultra high-accuracy frequency response to faithfully reproduce the original recording to the RIAA standard

SIMPLE AUDIO SETUP

SIMPLE AUDIO SETUP

Easily switch between your vinyl records and streaming your favorite music apps through Bluetooth with this simple plug and play setup – no separate amp required

Customize Reference RT85 High Fidelity Vinyl Turntable with PA10 Phono Preamp and Ai41 Powered 5” Stereo Bookshelf Speakers
RT85 Reference High Fidelity Vinyl Turntable   + $0.00 USD
Ai41 Powered 5" Stereo Bookshelf Speakers   + $0.00 USD
PA10 High Fidelity Phono Preamp   + $0.00 USD
Premium Grade Low Capacitance RCA Audio Cable (3 Feet)   + $0.00 USD

* Required Fields

Your Customization
Reference RT85 High Fidelity Vinyl Turntable with PA10 Phono Preamp and Ai41 Powered 5” Bookshelf Speakers - Thumbnail
Reference RT85 High Fidelity Vinyl Turntable with PA10 Phono Preamp and Ai41 Powered 5” Stereo Bookshelf Speakers

In stock

$856.99 USD

Summary

    Specifications

    RT85 Reference High Fidelity Vinyl Turntable

    Specifications
    Cabinet Specifications
    Cabinet Material MDF
    Finish High Gloss Walnut Real Wood Veneer
    Dust Cover Yes - Tinted
    Turntable Specifications
    Drive System Belt Drive
    Motor DC Motor with Servo Controller Analyzes motor speed 500 times/sec
    Motor Isolation Under-mounted 7-point silicone isolation with decoupling isolation ring
    Speed 33 1/3 RPM, 45 RPM (78 RPM - No)
    Speed Variation 0.10%
    Wow and Flutter 0.07%
    Signal-to-Noise Ratio (Weighted) 76 dB
    Signal-to-Noise Ratio (Unweighted) 65 dB
    Platter Acrylic
    Diameter of Platter 12 inches (30 cm)
    Weight of Platter 3 lbs (1.56 kg)
    Height of Platter 0.62 inches (16 mm)
    Auto-Stop Yes
    Turntable Mat Not Required
    Tonearm Specifications
    Tonearm Type Static Balanced, S-Type
    Supported Cartridge Weight 0.18 – 0.25 oz (5.0 – 7.5 g)
    Counterweight Yes – 3.60 oz (102 g) - Adjustable
    Anti-skating Adjustment Yes – Adjustable
    Pivot Bearing Yes
    Cueing Lever Yes
    Tonearm Material Aluminum
    Tonearm Wire 36 AWG Litz Cable / 7 Strand
    Effective Tonearm Mass 0.97 oz (27.5 g)
    Overhang 0.76 inches (19.2 mm)
    Effective Tonearm Length 8.82 inches (224 mm)
    Headshell Mount H-4 Bayonet Mount
    Cartridge Specifications
    Cartridge Type Moving Magnet (MM)
    Cartridge Model Ortofon: 2M Blue
    Replacement Stylus Stylus 2M Blue
    Stylus 0.3 x 0.7 mil
    Cantilever Aluminum
    Mount Half-inch
    Frequency Response 20 - 20,000 Hz (+2/-1 dB)
    Frequency Range 20 - 25,000 Hz (-3 dB)
    Channel Separation 25 dB at 1 kHz
    Channel Balance 1.5 dB @ 1 kHz
    Load Impedance/Capacitance 47k Ohms/150 - 300 pF
    Output Voltage 5.5 mV
    Cartridge Weight 0.25 oz (7.2g)
    Headshell Weight 0.35 oz (9g)
    Cartridge Height 0.71 inches (18 mm)
    Recommended Tracking Force 0.06 - 0.07 oz (1.6 - 2.0g)
    Vertical Tracking Angle 20° (Non-Adjustable)
    Rubber Belt Specifications
    Rubber Belt Design Continuous loop (joint-less)
    Width 0.17 inches (4.5 mm)
    Length 36.02 inches (915 mm)
    Thickness 0.02 inches (0.6 mm)
    Output Specifications
    Connector RCA (Gold-plated)
    Phono Preamp No - Separate Phono Preamp Required
    Phono Output 5.5 mV
    Phono Bypass N/A
    Line Output N/A
    Ground Terminal Yes
    Power Specification
    Input 100 – 240 V AC (50/60 Hz)
    Output 12 V / 500 mA
    Consumption 1.5 W
    General Specifications
    Dimensions 6 (+/-0.5) x 16.5 x 14.25 inches / 14.6 (+/-1.25) x 41.9 x 36.2 cm (HxWxD)
    Unit Weight 16.76 lb (7.6 kg)
    Operating Temperature 41°F to 95°F (5°C to 35°C)
    Wireless Playback No (Requires Bluetooth or WiFi transmitter connected via RCA connection to transmit audio wirelessly)
    Fluance Speaker Size Comparison Chart

    Click to Expand

    Fluance Size Comparison Chart

    Certifications FCC Certified, RoHS, CUL/UL
    UPC 061783270523
    What's Included

    RT85 Reference Turntable Line Out

    Click to Expand

    RT85 Reference Turntable Line Out


  • RT85W Turntable
  • Dust Cover + Hinges
  • Bubble Level
  • Headshell with Ortofon 2M Blue Cartridge
  • Counterweight (CW02)
  • Acrylic Platter (AP03) with Belt (RB35)
  • 5ft 100 - 240 V (50/60Hz) AC Power Adapter
  • 3ft 90pF RCA Cable (CA02)
  • 3ft Ground Wire (GW03)
  • 45 Adaptor
  • Motor Pulley Cap
  • Cotton Gloves
  • User Manual
  • Lifetime Customer Support
  • 2 Year Manufacturer’s Direct Warranty
  • Ai41 Powered 5" Stereo Bookshelf Speakers

    Specifications
    Speaker Type Bookshelf
    Speaker Configuration 2 Way – 2 Driver Bookshelf Speaker System with Integrated Amplifier (Pair)
    Enclosure Tuned Rear Port Bass Reflex Design Dampened
    Tweeter 1 inch Silk Soft Dome Neodymium Ferrofluid Cooled
    Woofer 5 inch Woven, Glass Fiber Composite Driver with Butyl Rubber Surrounds
    Amplifier Power Class D 90 Watts Continuous Average Output (2x 45 watts RMS)
    Frequency Response 35Hz – 20KHz (DSP Enhanced)
    Crossover Frequency 2800Hz Phase Coherent 12dB/Oct – PCB Mounted Circuitry
    Bluetooth Yes, Bluetooth 5.0
    Audio Inputs RCA L/R, Bluetooth, & Digital Optical TOSLINK
    Internal Lead Wire 18 gauge Internal Lead Wire to Reduce Signal Degradation
    Subwoofer Output Yes, 80 Hz Low-pass Frequency Cutoff
    Phono Preamp No
    Internal DAC Yes
    WiFi Casting Pairs via Bluetooth with Google Home, Amazon Echo, and AppleTV (Ai41 is not a WiFi speaker)
    Total Harmonic Distortion (THD) <0.3% (THD+N 1%)
    Power Input 100-240V AC (50/60Hz)
    Dimensions 10.9 x 6.5 x 7.6 inches / 27.7 x 16.5 x 19.3 cm (HxWxD)
    Speaker Weight Active Speaker: 8.52 lbs (3.86 kg)
    Passive Speaker: 7.44 lbs (3.37 kg)
    Fluance Speaker Size Comparison Chart

    Click to Expand

    Fluance Size Comparison Chart

    Certifications cTUVus+CB, ICES, FCC Certified
    UPC 061783272763
    What's Included

    Ai41 SPEAKER LINE OUT

    Click to Expand

    Ai41 Speaker Lineout

    • Ai41 Powered Bookshelf Speakers (pair)
    • Remote Control
    • 2x AAA Batteries
    • 6ft Power Cable
    • 8ft 18 Gauge Speaker Wire
    • Quick Start Guide
    • Fluance Catalog
    • Lifetime Customer Support
    • 2 Year Manufacturer’s Warranty

    PA10 High Fidelity Phono Preamp

    Specifications
    Audio Specifications
    Audio Circuit Type Passively Equalized RIAA
    Compatible Stylus MM
    Gain 38 dB
    Phono Input Sensitivity 30 mV
    Total Harmonic Distortion (THD) 0.00%
    RIAA Equalization Accuracy (deviation) 20 Hz - 20 kHz +/- 0.5 dB
    Signal/Noise (S/N) Ratio > 90 dB
    Crosstalk > -86 dB
    Input Impedance 47 kohm
    Input Load Capacitance 100 pF
    Output Impedance 100 ohm
    Output Voltage 2.2 V
    Maximum Input @ 1 kHz 100 mV
    Maximum Phono Stage Output 125 mV
    High Pass Filter Cutoff 20 Hz
    Dynamic Range > 85 dB
    Input/Output Specifications
    Input RCA L/R (Gold Plated)
    Output RCA L/R (Gold Plated)
    Ground Terminal Yes
    Cabinet Specifications
    Cabinet Material MDF
    Finish PVC Wood
    Color Black
    Power Specification
    Power Input 110 V - 240 V ~ 50/60 Hz 0.5 A
    Power Adapter Output 24 V, 500 mA
    Power Consumption 0.4 W
    General Specifications
    Dimensions 4(L) x 2.25(H) x 3.6(D) inches (101.5 x 57.1 x 91.5 mm)
    Weight 11.5 oz (325 g)
    Operating Temperature -5°C - 45°C
    Noise Floor (Unweighted) < 220 uV
    Compatible With Fluance RT80, RT81, RT82, RT83, RT84, and RT85 turntables as well as any turntables that are equipped with a Moving Magnet cartridge
    UPC 061783269794
    What's Included

    PA10 Preamplifier Lineout

    Click to Expand

  • PA10 Unit
  • Power Adapter
  • User Manual
  • Fluance Catalog
  • Lifetime Customer Support
  • 2 Year Manufacturer’s Warranty
  • Premium Grade Low Capacitance RCA Audio Cable (3 Feet)

    Specifications
    Compatible With RT80, RT81, RT82, RT83, RT84, RT85, PA10
    Length 3'
    UPC 61783269053
    What's Included
  • 3 Foot Premium Grade RCA Audio Cable
  • Lifetime Customer Support
  • 2 Year Manufacturer’s Warranty
  • What's Included
