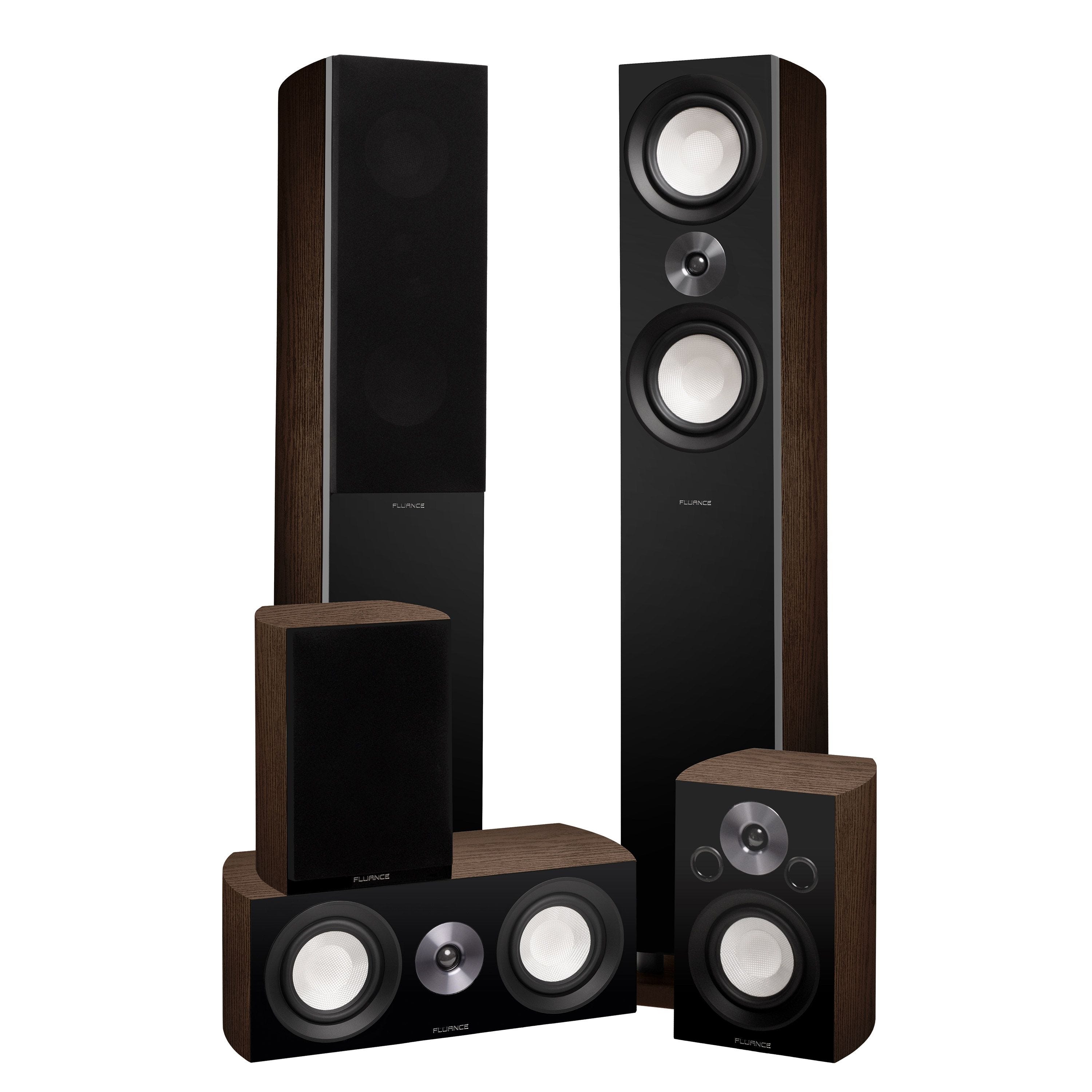

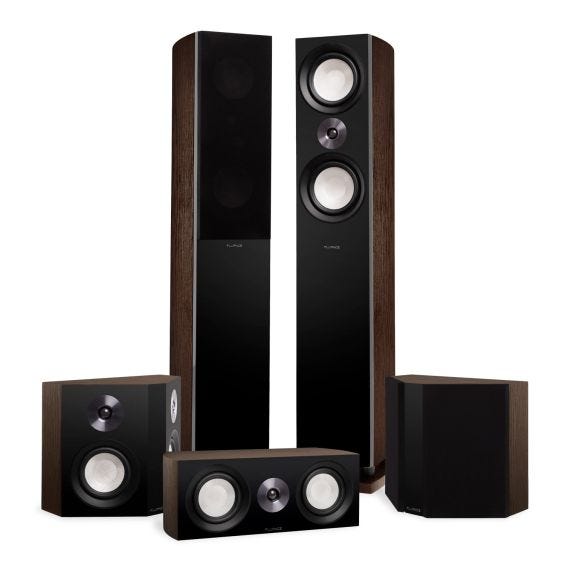

Reference Surround Sound Home Theater 5.0 Channel Speaker System with Bipolar Speakers
Natural Walnut (X850WB)
Reference Surround Sound Home Theater 5.0 Channel Speaker System with Bipolar Speakers
HIGH PERFORMANCE 5.0 SPEAKER SYSTEM
Engineered with premium components to pack a powerful punch of room-filling music delivering a truly immersive home audio experience featuring floorstanding speakers, a center channel and bipolar speakers
DYNAMIC FLOORSTANDING SPEAKERS
Unique down-firing 8-inch woofer with neodymium silk dome tweeters and dual 6.5-inch woven fiber midrange drivers ensuring a powerful performance
DETAILED CENTER CHANNEL
Exquisite dialogue reproduction with this center channel speaker provides outstanding clarity for accurate reproduction of dialogue and clear musical vocals
WIDE DISPERSION BIPOLAR SPEAKERS
Utilizing a distinctive driver configuration, the design creates omni-directional acoustics for an enveloping movie theater experience
SUPERIOR CABINET ENGINEERING
Meticulously designed enclosure with rigid internal bracing to avoid unwanted resonance and dual rear ports for controlled low-frequency response (Frequency Range 35Hz - 25KHz)
Overview
Specifications
Reference High Performance 3-Way Floorstanding Loudspeakers
| Speaker Configuration | 3 Way - 4 Driver Floorstanding Main Speakers (pair) |
|---|---|
| Tweeter | 1 inch Neodymium Balanced Silk Dome Ferrofluid Cooled |
| Midrange | Dual 6.5 inch Woven Glass Fiber Composite Drivers with Butyl Rubber Surrounds |
| Woofer | Isolated Down-firing 8 inch Polymer Treated High Excursion Driver with Butyl Rubber Surround |
| Power Handling | 80 - 160 Watts RMS |
| Frequency Response | 35Hz - 25KHz |
| Sensitivity | 87dB @ 1W / 1m |
| Crossover Frequency | 100/3000 Hz Phase Coherent - PCB Mounted Circuitry |
| Impedance | 8 Ohm Compatible |
| Enclosure | Tuned Rear Dual Port Bass Reflex Tower Design Dampened |
| Dimensions | 45.86 x 9.25 x 12.99 inches (HxWxD) |
| Speaker Weight | 47.70 pounds/speaker |
| Series | REFERENCE |
| Certifications | CE Certified |
| Subwoofer Output | 0 |
| DOLBY ATMOS | Ideal for use as front speakers in a Dolby Atmos Surround Sound System |
| Frequency Response Graph | Click to Expand |
| UPC | 061783273180 |
| What's Included |
|
Reference High Performance 2-Way Center Channel Speaker
| Speaker Configuration | 2 Way - 3 Driver Center Channel |
|---|---|
| Tweeter | 1 inch Neodymium Balanced Silk Dome Ferrofluid Cooled |
| Woofer | Dual 5.25 inch Woven Glass Fiber Composite Drivers with Butyl Rubber Surrounds |
| Power Handling | 50 - 100 Watts RMS |
| Frequency Response | 110Hz - 20KHz |
| Sensitivity | 86dB @ 1W / 1m |
| Crossover Frequency | 3000 Hz Phase Coherent - PCB Mounted Circuitry |
| Impedance | 8 Ohm Compatible |
| Enclosure | Acoustic Suspension Design |
| Dimensions | 6.9 X 18.5 X 9.0 inches (HxWxD) |
| Speaker Weight | 15 pounds |
| Series | REFERENCE |
| Certifications | CE Certified |
| Subwoofer Output | 0 |
| DOLBY ATMOS | Ideal for use as surround sound speakers in a Dolby Atmos Surround Sound |
| Frequency Response Graph | Click to Expand |
| UPC | 061783269725 |
| What's Included |
|

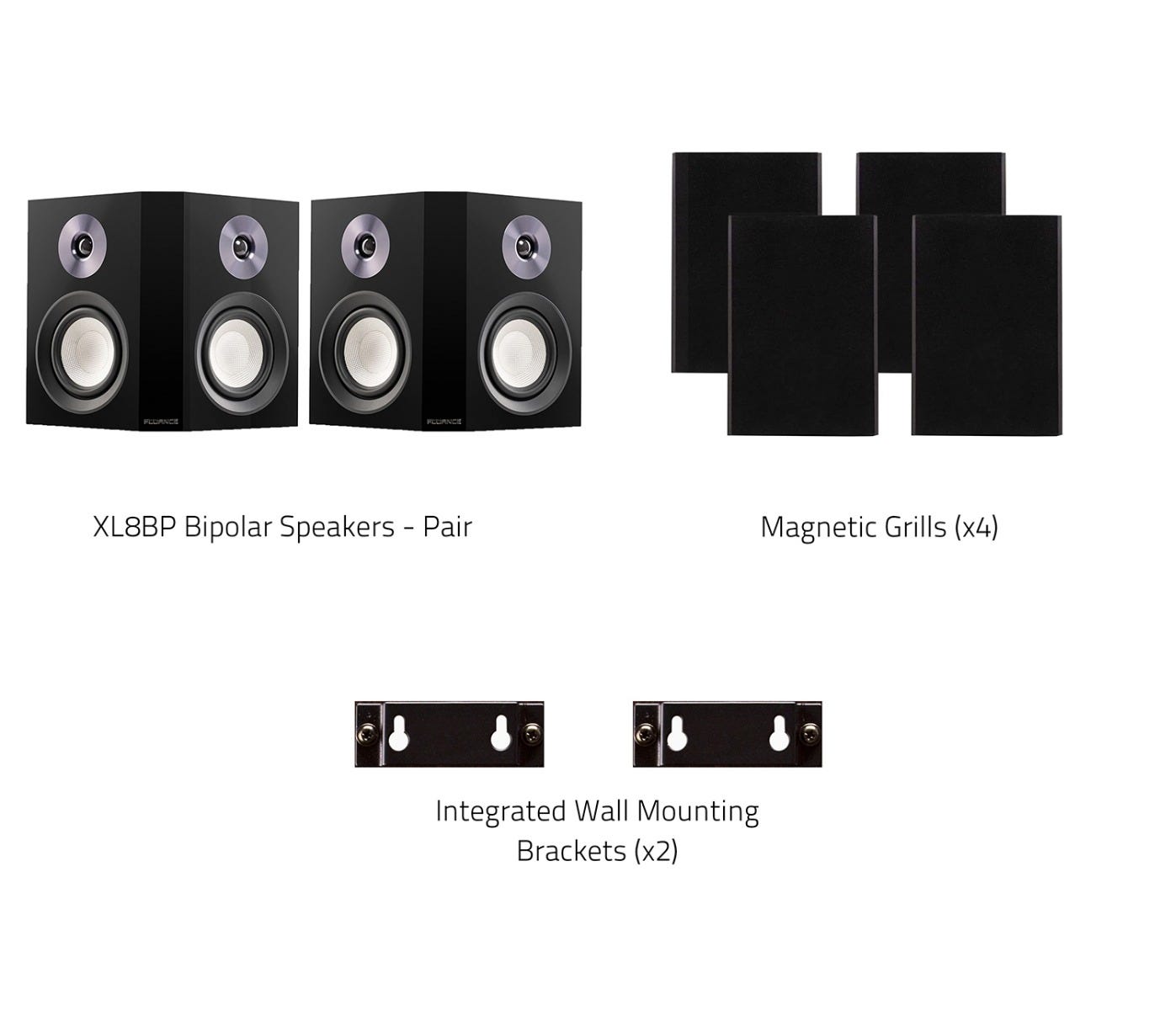

Reference High Performance 2-Way Bipolar Surround Speakers
| Speaker Configuration | 2 Way - 4 Driver Bipolar Surround Speakers (Wall Mountable) |
|---|---|
| Tweeter | Dual 1 Inch Neodymium Balanced Silk Dome Ferrofluid Cooled |
| Woofer | Dual 5.25 Inch Woven Glass Fiber Composite Drivers with Butyl Rubber Surrounds |
| Power Handling | 50 - 100 Watts RMS |
| Frequency Response | 95Hz - 20KHz |
| Sensitivity | 86dB @ 1W / 1m |
| Crossover Frequency | 2300 Hz Phase Coherent - PCB Mounted Circuitry |
| Impedance | 8 Ohm Compatible |
| Enclosure | Acoustic Suspension Design |
| Dimensions | 11.4 x 13.8 x 7.6 inches (HxWxD) |
| Speaker Weight | 15.4 pounds/speaker |
| Series | REFERENCE |
| Certifications | CE Certified |
| Subwoofer Output | 0 |
| DOLBY ATMOS | Ideal for use as surround sound speakers in a Dolby Atmos Surround Sound |

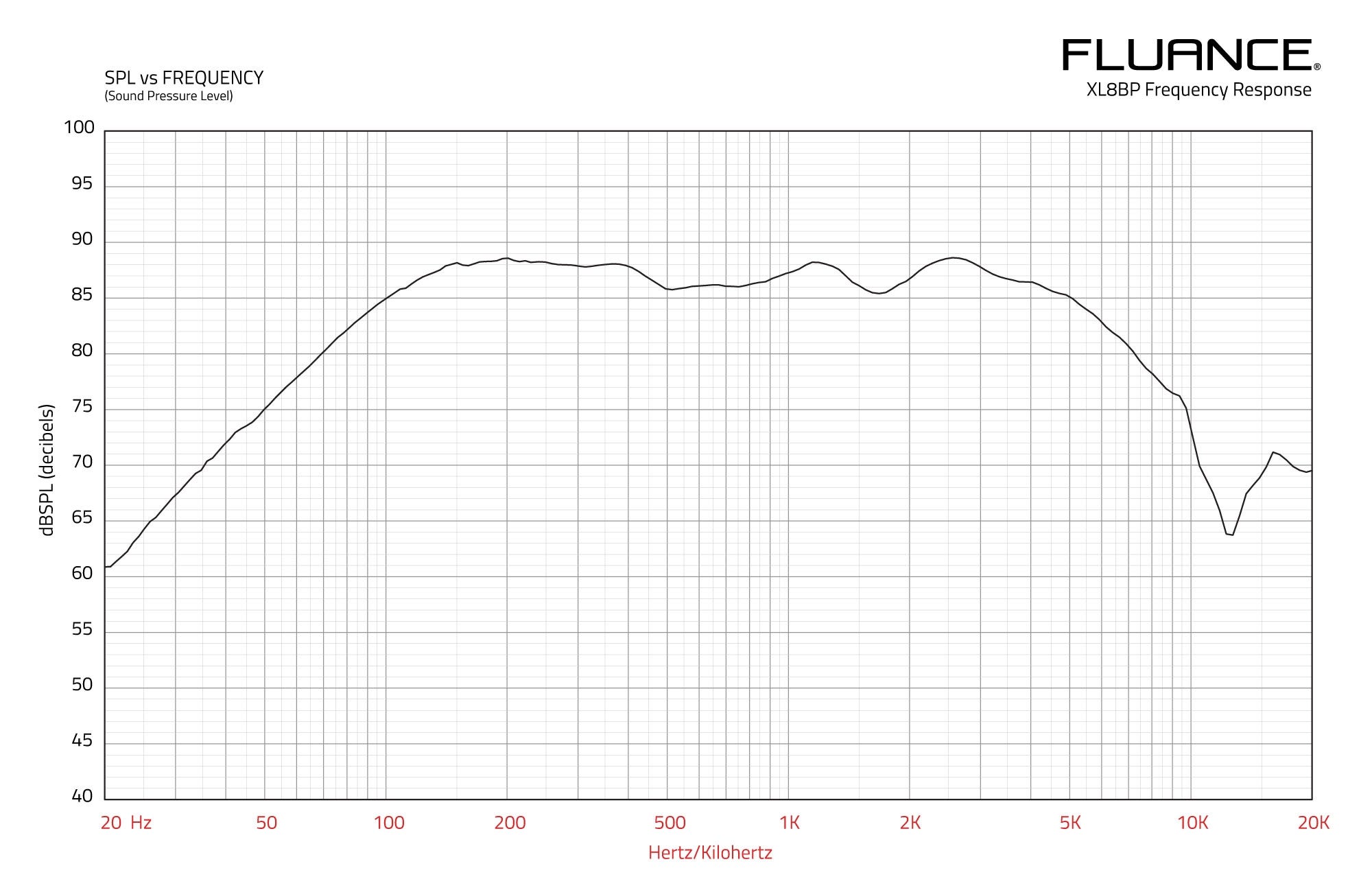

| Frequency Response Graph | Click to Expand |
| UPC | 061783269763 |
| What's Included |
|
