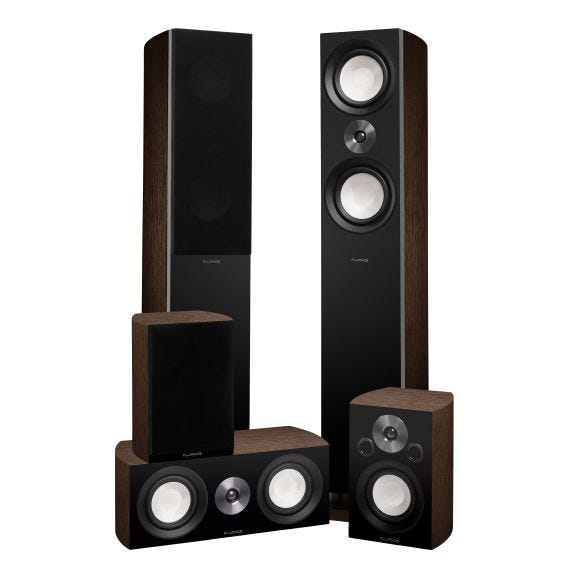

Reference Surround Sound Home Theater 5.0 Channel Speaker System
Natural Walnut (XL8HTBW)
Reference Surround Sound Home Theater 5.0 Channel Speaker System
NEXT-LEVEL SOUND PERFORMANCE
Engineered with premium components to pack a powerful punch of room-filling music delivering a truly immersive home theater experience
EXQUISITE BASS PERFORMANCE
Unique down-firing 8” subwoofers produce exceptionally deep and undistorted low frequency response while maintaining a minimalist footprint
RICH AND DETAILED MIDRANGE
Woven fiber drivers provide vibrational damping and optimal linear movement resulting in a faithful reproduction of the original recording
CAPTIVATING CLARITY IN THE HIGH FREQUENCIES
Silk dome tweeters produce crisp, natural highs while providing spacious off axis dispersion making every spot the sweet spot
SUPERIOR CABINET ENGINEERING
Meticulously designed enclosure with rigid internal bracing to avoid unwanted resonance and dual rear ports for controlled low-frequency response
Overview
Specifications
Reference High Performance 3-Way Floorstanding Loudspeakers
| Speaker Configuration | 3 Way - 4 Driver Floorstanding Main Speakers (pair) |
|---|---|
| Tweeter | 1 inch Neodymium Balanced Silk Dome Ferrofluid Cooled |
| Midrange | Dual 6.5 inch Woven Glass Fiber Composite Drivers with Butyl Rubber Surrounds |
| Woofer | Isolated Down-firing 8 inch Polymer Treated High Excursion Driver with Butyl Rubber Surround |
| Power Handling | 80 - 160 Watts RMS |
| Frequency Response | 35Hz - 25KHz |
| Sensitivity | 87dB @ 1W / 1m |
| Crossover Frequency | 100/3000 Hz Phase Coherent - PCB Mounted Circuitry |
| Impedance | 8 Ohm Compatible |
| Enclosure | Tuned Rear Dual Port Bass Reflex Tower Design Dampened |
| Dimensions | 45.86 x 9.25 x 12.99 inches (HxWxD) |
| Speaker Weight | 47.70 pounds/speaker |
| Series | REFERENCE |
| Certifications | CE Certified |
| Subwoofer Output | 0 |
| DOLBY ATMOS | Ideal for use as front speakers in a Dolby Atmos Surround Sound System |
| Frequency Response Graph | Click to Expand |
| UPC | 061783273180 |
| What's Included |
|
Reference High Performance 2-Way Bookshelf and Surround Speakers
| Speaker Configuration | 2 Way - 2 Driver Surround Speakers (Wall Mountable) |
|---|---|
| Tweeter | 1 inch Neodymium Balanced Silk Dome Ferrofluid Cooled |
| Woofer | 5.25 inch Woven Glass Fiber Composite Drivers with Butyl Rubber Surrounds |
| Power Handling | 40 - 80 Watts RMS |
| Frequency Response | 50Hz - 20KHz |
| Sensitivity | 85dB @ 1W / 1m |
| Crossover Frequency | 3100 Hz Phase Coherent - PCB Mounted Circuitry |
| Impedance | 8 Ohm Compatible |
| Enclosure | Vented Bass-reflex Design |
| Dimensions | 11.4 x 8.1 x 9.0 inches (HxWxD) |
| Speaker Weight | 11.35 pounds/speaker |
| Series | REFERENCE |
| Certifications | CE Certified |
| Subwoofer Output | 0 |
| DOLBY ATMOS | Ideal for use as surround sound speakers in a Dolby Atmos Surround Sound |
| Frequency Response Graph | Click to Expand |
| UPC | 61783269749 |
| What's Included |
|
Reference High Performance 2-Way Center Channel Speaker
| Speaker Configuration | 2 Way - 3 Driver Center Channel |
|---|---|
| Tweeter | 1 inch Neodymium Balanced Silk Dome Ferrofluid Cooled |
| Woofer | Dual 5.25 inch Woven Glass Fiber Composite Drivers with Butyl Rubber Surrounds |
| Power Handling | 50 - 100 Watts RMS |
| Frequency Response | 110Hz - 20KHz |
| Sensitivity | 86dB @ 1W / 1m |
| Crossover Frequency | 3000 Hz Phase Coherent - PCB Mounted Circuitry |
| Impedance | 8 Ohm Compatible |
| Enclosure | Acoustic Suspension Design |
| Dimensions | 6.9 X 18.5 X 9.0 inches (HxWxD) |
| Speaker Weight | 15 pounds |
| Series | REFERENCE |
| Certifications | CE Certified |
| Subwoofer Output | 0 |
| DOLBY ATMOS | Ideal for use as surround sound speakers in a Dolby Atmos Surround Sound |
| Frequency Response Graph | Click to Expand |
| UPC | 061783269725 |
| What's Included |
|
Customer Reviews
Resources
Manual
FAQs
What is different from the XL7 Reference Speakers?
While they follow the same form factor, the XL8 Reference Series feature improved components such as woven glass fiber composite drivers. We've also redesigned the crossover, drivers and cabinet to improve the overall performance of the entire series.
