RT82 Reference High Fidelity Vinyl Turntable

Record Player with Ortofon OM 10 Cartridge, Speed Control Motor, High Mass MDF Wood Plinth, Vibration Isolation Feet

Rating:
98%
$299.99 USD

Color: Piano Black

color-swatchcolor-swatchcolor-swatchcolor-swatch

Model:

RT82 Reference High Fidelity Vinyl Turntable
RT82 Reference High Fidelity Vinyl Turntable

PURE ANALOG PERFORMANCE

The definitive vinyl record listening experience for beautifully warm and natural music, transporting you into the center of the performance

EXCEPTIONAL MUSICAL ACCURACY

Immerse yourself in dynamic music reproduction with the Ortofon OM 10 elliptical cartridge delivering improved linearity, higher channel separation and reduced distortion

SPEED CONTROL FOR PRECISION PLAYBACK

The isolated motor prevents unwanted vibrations and noise while the speed control mechanism ensures consistent platter velocity (0.07% Wow/Flutter)

HIGH MASS MDF WOOD PLINTH

Revel in the gorgeously crafted cabinet with real wood finish and a highly precise metal platter with adjustable resonance damping feet, ensuring superior isolation from unwanted micro-vibrations

signal icon

SPECTACULAR SIGNAL CLARITY

Caress your records with the balanced S-shaped tonearm for accurate tracking of the record groove and no electronics in the signal path for a cleaner, exceptionally detailed sound (Note: phono preamp not included)

Specifications

Specifications
Cabinet Specifications
Cabinet Material MDF
Finish High Gloss Piano Black
Dust Cover Yes - Tinted
Turntable Specifications
Drive System Belt Drive
Motor DC Motor with Servo Controller Analyzes motor speed 500 times/sec
Motor Isolation Under-mounted 7-point silicone isolation with decoupling isolation ring
Speed 33 1/3 RPM, 45 RPM (78 RPM - No)
Speed Variation 0.13%
Wow and Flutter 0.07%
Signal-to-Noise Ratio (Weighted) 76 dB
Signal-to-Noise Ratio (Unweighted) 65 dB
Platter Aluminum
Diameter of Platter 12 inches (30 cm)
Weight of Platter 1.22 lbs (553 g)
Height of Platter 0.62 inches (16 mm)
Auto-Stop Yes
Turntable Mat Rubber
Tonearm Type Static Balanced, S-Type
Supported Cartridge Weight 0.18 – 0.25 oz (5.0 – 7.5 g)
Counterweight Yes – 3.60 oz (102 g) - Adjustable
Anti-skating Adjustment Yes – Adjustable
Pivot Bearing Yes
Cueing Lever Yes
Tonearm Material Aluminum
Tonearm Wire 36 AWG Litz Cable / 7 Strand
Effective Tonearm Mass 0.77 oz (21.78 g)
Overhang 0.76 inches (19.2 mm)
Effective Tonearm Length 8.82 inches (224 mm)
Headshell Mount H-4 Bayonet Mount
Cartridge Type Moving Magnet (MM)
Cartridge Model Ortofon OM 10
Replacement Stylus Stylus 10
Stylus 0.3 x 0.7 mil
Cantilever Aluminum
Mount Half-inch
Frequency Response 20 - 20,000 Hz (+3/-1 dB)
Frequency Range 20 - 22,000 Hz
Channel Separation 22 dB at 1 kHz
Channel Balance < 1.5 dB @ 1 kHz
Load Impedance/Capacitance 47k Ohms/200 - 500 pF
Output Voltage 4.0 mV
Cartridge Weight 0.18 oz (5 g)
Cartridge Height 0.71 inches (18 mm)
Recommended Tracking Force 0.05 oz (1.5 g)
Vertical Tracking Angle 20° (Non-Adjustable)
Rubber Belt Specifications
Rubber Belt Design Continuous loop (joint-less)
Width 0.17 inches (4.5 mm)
Length 36.02 inches (915 mm)
Thickness 0.02 inches (0.6 mm)
Connector RCA (Gold-plated)
Phono Preamp No - Separate Phono Preamp Required
Phono Output 4.0 mV
Ground Terminal Yes
Input 100 – 240 V AC (50/60 Hz)
Output 12 V / 500 mA
Consumption 1.5 W
Dimensions 6 (+/-0.5) x 16.5 x 14.25 inches / 14.6 (+/-1.25) x 41.9 x 36.2 cm (HxWxD)
Unit Weight 14.99 lb (6.8 kg)
Operating Temperature 41°F to 95°F (5°C to 35°C)
Wireless Playback No (Requires Bluetooth or WiFi transmitter connected via RCA connection to transmit audio wirelessly)
Fluance Speaker Size Comparison Chart

Click to Expand

Fluance Size Comparison Chart

Certifications FCC Certified, RoHS, CUL/UL
UPC 061783268377

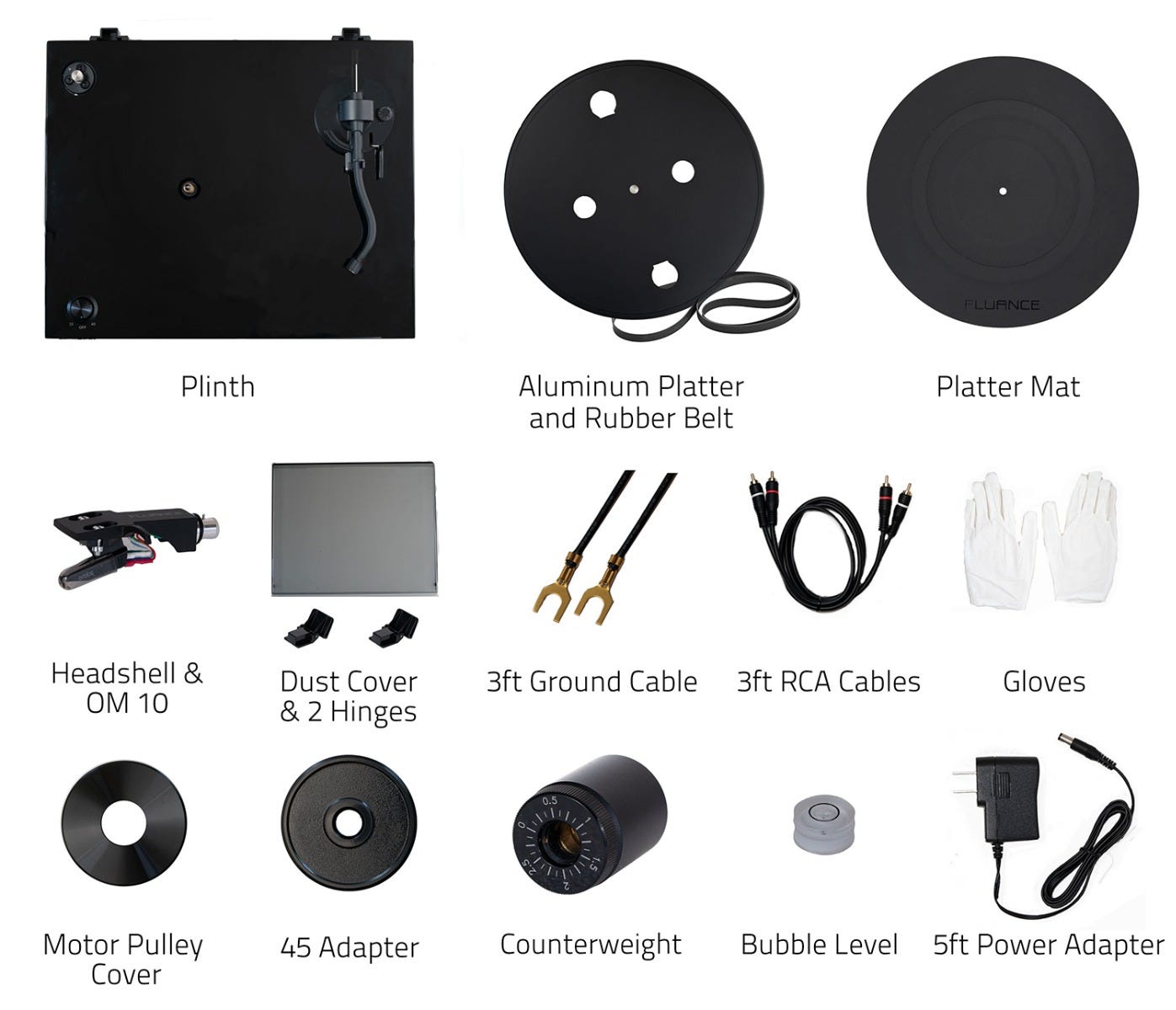

What's Included

RT82 Reference Turntable Line Out

Click to Expand

RT82 Reference Turntable Line Out


  • RT82T Turntable
  • Dust Cover + Hinges
  • Bubble Level
  • Headshell with Ortofon OM 10 Cartridge
  • Counterweight (CW02)
  • Metal Platter with Belt
  • Rubber Platter Mat
  • 5ft 100 - 240 V (50/60Hz) AC Power Adapter
  • 3ft 90pF RCA Cable (CA03)
  • 3ft Ground Wire (GW03)
  • 45 Adaptor
  • Motor Pulley Cap
  • Cotton Gloves
  • User Manual
  • Lifetime Customer Support
  • 2 Year Manufacturer’s Direct Warranty
  • What's Included

    Write Your Own Review
    You're reviewing:RT82 Reference High Fidelity Vinyl Turntable
    Your Rating

    Guides

    Take a comprehensive look at the set up, function, and maintenance of your product. The product manual details all of its specifications and how to care for your Fluance product.

    Frequently Asked Questions

    Do I need an amplifier for this turntable?


    An amplifier is only needed if you’re connecting the turntable to passive speakers such as the Signature Series Bookshelf Surround Speakers.

    If you’re looking for an option without a separate amplifier, the Ai40 Powered Bookshelf speakers fit the bill.
    With the Ai40, all you need to do is connect the included RCA cables to your preamp, then to the speakers and you’re ready to listen to the music the way it was meant to be heard.

    Do I need a Preamp?


    If you intend to use your Reference series turntable with powered bookshelf speakers such as our Ai40 model, a preamp will be required.
    The preamp will boost the signal to line level (similar to a headphone jack) so you can play it on speakers with RCA or AUX inputs.

    If you have a home theater or stereo receiver/amplifier, you will need a preamp if the amplifier does not have a PHONO input. If you have a PHONO input, you may have a preamp already built in. Be sure to refer to the manufacturer’s specifications or manual for confirmation!

    Why does this model not include a preamp?


    This design choice was made with a number of factors in mind. The main reason was to separate electronics from the turntable’s signal path to maintain the purity of the analog signal. Many listeners also like to customize their listening experience and choose specific components such as preamps based on unique sonic qualities. Using separate components also allows for optimization of cartridge and phono stage compatibility. If you upgrade your cartridge in the future, you can pair with an optimal phono preamp to maximize performance and achieve the sound profile you desire. !

    What does a servo motor do?

    We want our users to experience music the way it was meant to be heard and have pulled out all the stops for the new Reference series.
    These new turntables include a servo belt drive motor.

    What does this mean for you?

    This means that you have a sensor checking and adjusting the speed of the motor up to 500 times a second to make sure the speed of your turntable is consistent with no manual adjustments, bringing wow and flutter under 0.07%!

    What are the benefits of the Reference series turntables?

    What's new! What does it mean?
    The motor is located away from the platter Allows the use of an acrylic platter, reduced rumble at the stylus.
    90pF RCA cables Upgraded RCA cables with higher capacitance to protect and maintain the purest signal path.
    No internal preamp Provides a clean signal, with no electronics in the path for increased audio quality.
    Spring loaded adjustable feet with built-in isolation Allows the turntable to be leveled on any surface, bubble level included.
    Spike-shaped feet prevent outside vibrations from affecting audio quality.
    Servo controlled motor Improves speed consistency and reduces wow and flutter by checking the speed up to 500 times per second!
    Ortofon Stylus All Reference turntables are compatible with Ortofon OM10, Blue and Red Cartridges.
    112g Counterweight Heavier counterweight to accommodate the Ortofon stylus.
    More diverse upgrade options.
    Compatible with an acrylic platter (included with RT85) Heavier, denser material reduces resonance and improves speed consistency, not to mention great looks!
    Customizable All Reference turntable components are compatible with each other giving you a clear upgrade path!

    Which cartridges can I use on my turntable?


    Reference turntables are compatible and shipped with with moving magnet cartridges such as the Ortofon OM10, 2M Red and 2M Blue, giving you the ability to customize your system for top tier performance.
    Cartridges must be between 3.5 to 7.5 grams to be balanced correctly.

    Can I buy the turntable without a cartridge?


    All Fluance Reference turntables are sold with an Orotfon cartridge included.

    We do know that our users love to customize their decks and there are many options out there, so we designed our Reference series to have extensive upgrade potential!.
